2 Essential DIY Table Saw Jigs: Crosscut Sled & Tenoning Jig
A table saw is one of the most versatile tools in the woodworking shop. But with the right accessories, it can do much more than rip boards and make basic crosscuts.
Two of the most useful upgrades you can make are a precision table saw crosscut sled and an adjustable tenoning jig.
The crosscut sled provides better workpiece support for accurate, repeatable cuts, while the tenoning jig makes it easier to cut precisely sized tenons for strong mortise-and-tenon joinery.
Both are practical shop-built accessories that can improve the accuracy and versatility of your table saw.
In this episode of the Woodsmith Shop, you'll see how these two jigs are built and learn about the features that make them so useful.

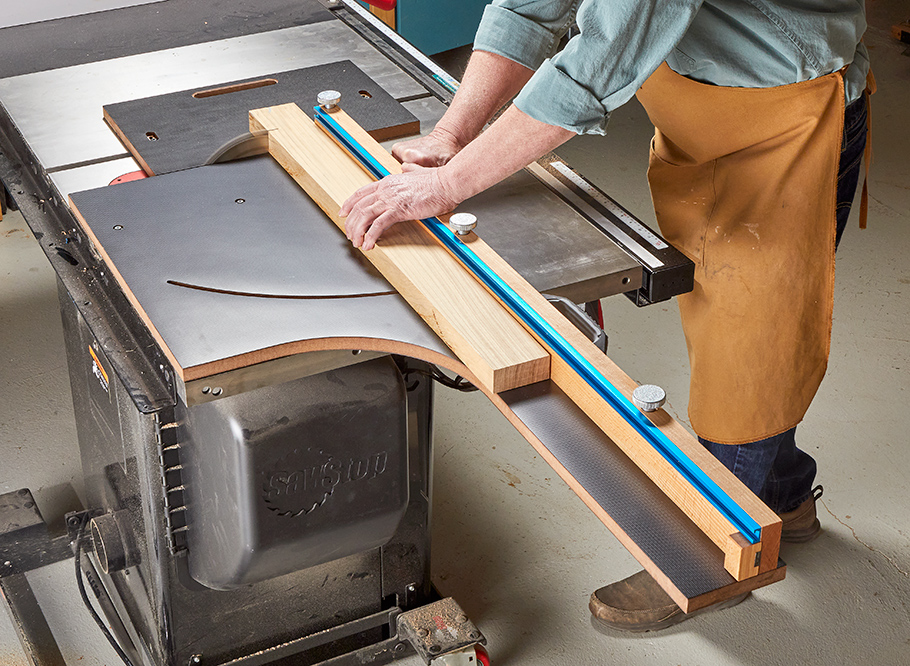

Build a Precision Table Saw Crosscut Sled
A good crosscut sled is one of the most valuable table saw accessories you can own.
Unlike a standard miter gauge, a crosscut sled provides a broad, stable surface for supporting workpieces as they move past the blade.
That extra support is especially helpful when cutting wide panels, cabinet parts, and furniture components.
But this shop-made table saw cutoff sled offers much more than a basic plywood platform.
A Pivoting Fence for Accurate Crosscuts
The sled features a sturdy hardwood fence that pivots to accommodate angled cuts.
For square crosscuts, the fence can be returned to its 90° position and checked for accuracy.
The adjustable design makes it useful for cutting miters and other angles without needing a separate dedicated sled.

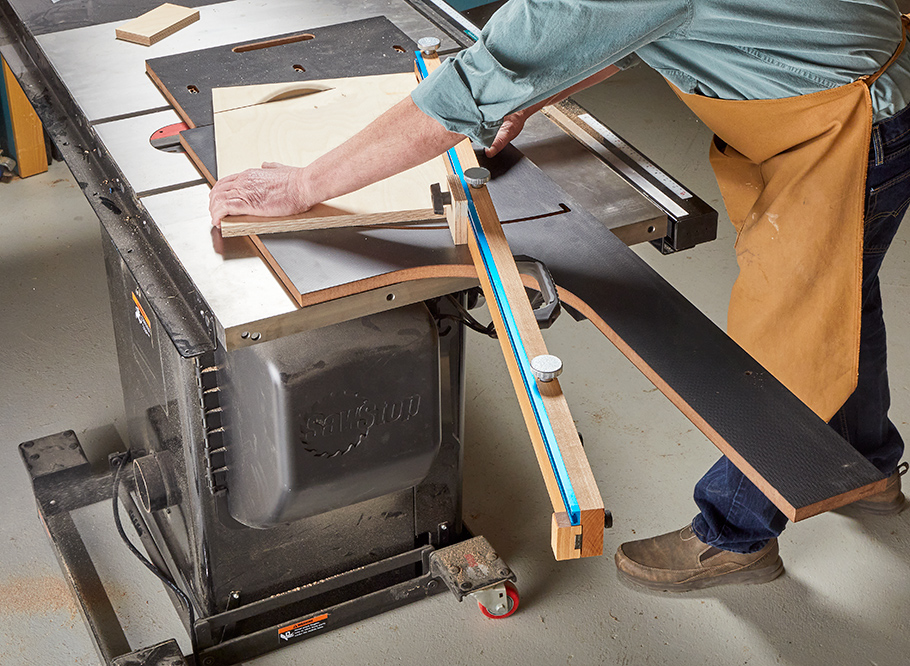

Adjustable Stops for Repeatable Cuts
When you're making several identical parts, a stop block saves time and improves consistency.
This sled includes adjustable stops that let you establish a cutting length without measuring and marking every workpiece.
An extension arm provides additional reach for longer parts.
T-Track and Zero-Clearance Support
A built-in T-track makes it easy to add stops, hold-downs, and other compatible accessories.
The sled also includes zero-clearance components that support the wood fibers close to the blade, helping reduce tearout.
The base is constructed from MDF with laminate on both faces, providing a stable, smooth-sliding surface.
Together, these features make the sled a versatile accessory for cabinetmaking, furniture building, and everyday woodworking.
Ready to build your own? The step-by-step plans include the drawings, dimensions, materials, and construction details.
GET THE COMPLETE STEP-BY-STEP PLANS → Build a Table Saw Cutoff Sled

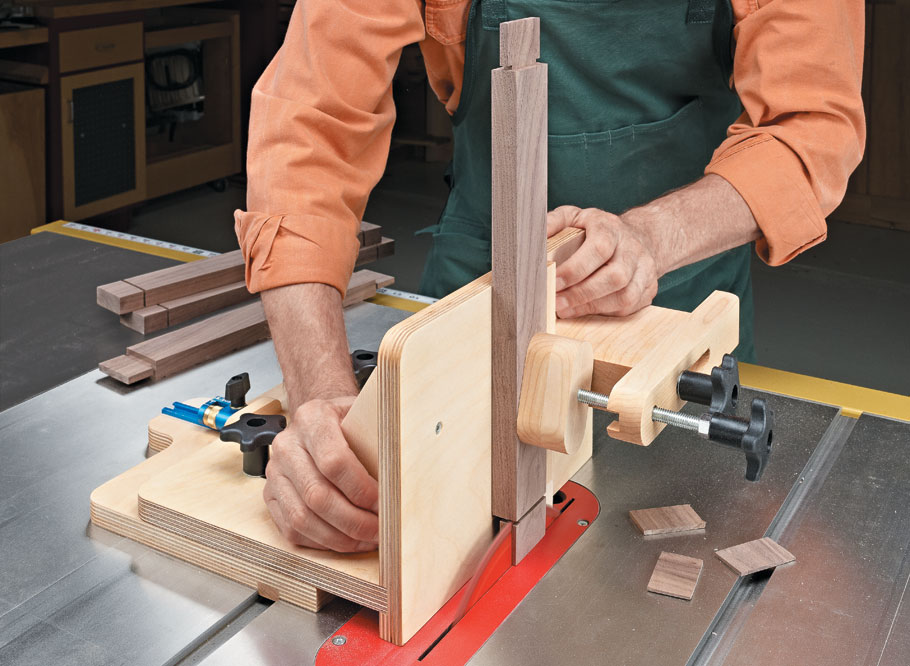

Build an Adjustable Table Saw Tenoning Jig
Mortise-and-tenon joinery is one of the most reliable ways to connect furniture parts. But cutting tenons accurately requires careful setup.
A table saw tenoning jig makes this process much easier by holding the workpiece vertically as it passes the blade.
This adjustable version adds a useful feature: fine control over the position of the workpiece.
Secure Support for Cutting Tenons
The jig rides in the table saw's miter slot and uses a tall vertical fence to support the workpiece.
An integrated clamping system holds the stock firmly in position during the cut.
This provides a controlled way to cut tenon cheeks while keeping your hands away from the blade.

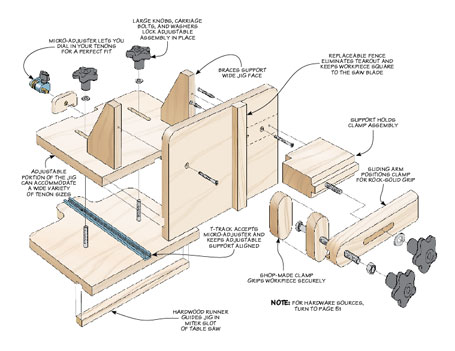

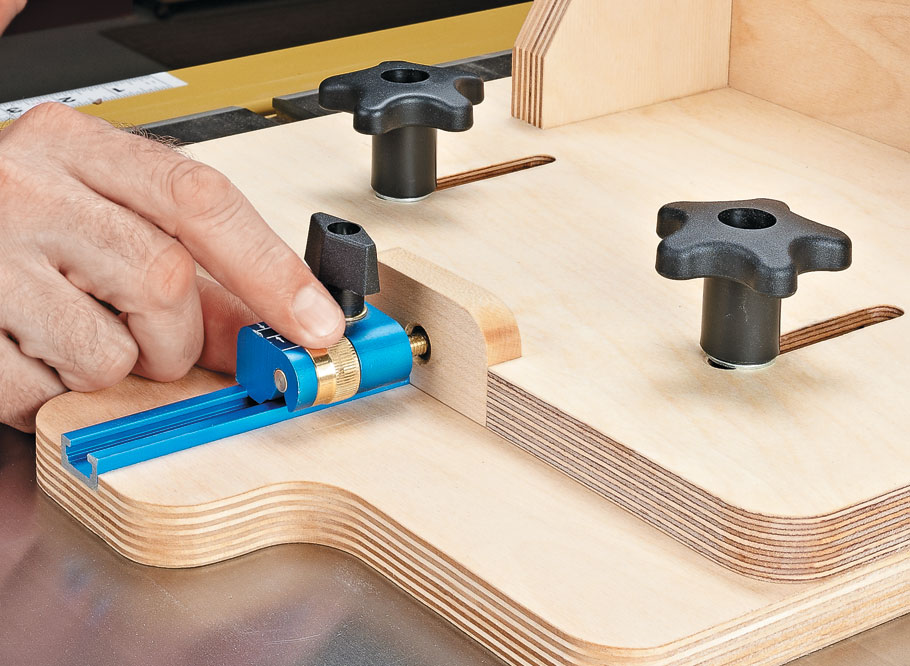

Micro-Adjustment for Precise Joinery
One of the best features of this jig is its built-in micro-adjustment mechanism.
Rather than repositioning the workpiece by trial and error, you can make small, controlled adjustments to fine-tune the tenon's thickness.
This is especially useful when fitting tenons to mortises.
A well-fitted tenon should slide into its mortise without excessive force or looseness. Being able to make small adjustments helps you achieve that fit consistently.
Built for Repeatable Results
Once the jig is dialed in, you can use the same setup to cut multiple matching tenons.
That makes it a practical accessory for furniture projects with repeated joinery, such as tables, chairs, cabinet doors, and frames.
Build this precision jig for your own table saw using the detailed project plans.
GET THE COMPLETE STEP-BY-STEP PLANS → Build an Adjustable Tenoning Jig
Why Build Your Own Table Saw Jigs?
Commercial table saw accessories can be expensive, and they don't always offer the exact features you need.
Building your own jigs gives you the opportunity to customize them for your saw and the projects you build most often.
The crosscut sled provides support and versatility for cutting parts to length. The adjustable tenoning jig adds precision when cutting one of woodworking's most useful joints.
Together, they expand what you can accomplish with your table saw.
And building the jigs is a rewarding woodworking project in its own right.
Watch the Video and Build Both Jigs
If you're looking for practical ways to improve your table saw setup, these two jigs are a great place to start.
Watch the video above to see the construction process and learn how the features work.
Then use the complete woodworking plans to build your own crosscut sled and adjustable tenoning jig.
With these two shop-made accessories ready to go, you'll be better equipped to tackle everything from accurate crosscuts to precision mortise-and-tenon joinery.

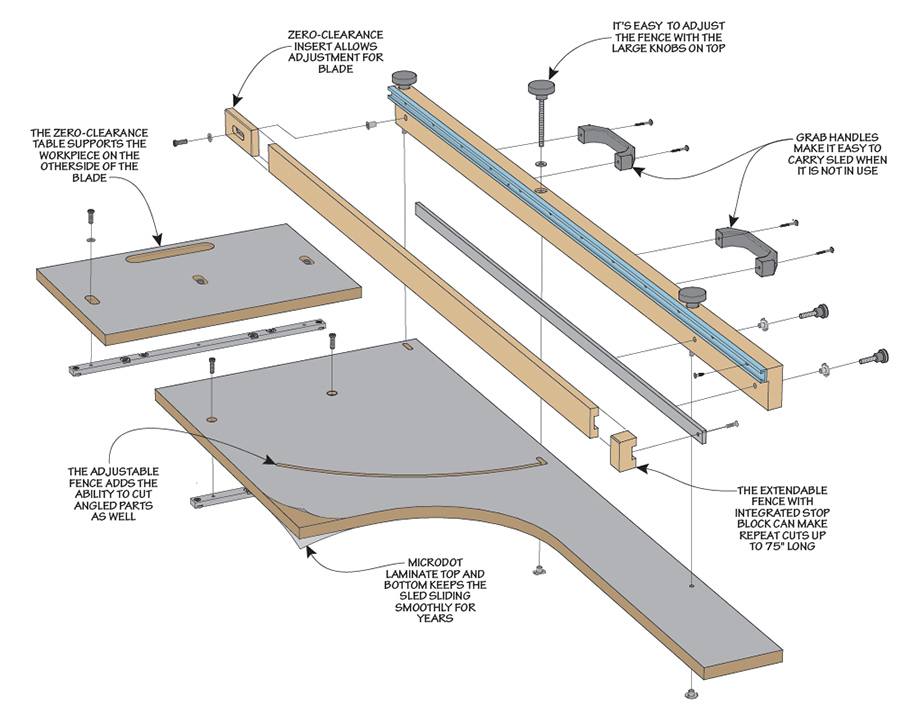

Take a Closer Look at the Precision Table Saw Cutoff Sled
Want to learn more about what makes this cutoff sled different?
Take a closer look at its pivoting fence, extendable stop block, full-length T-track, laminated MDF base, and zero-clearance accessories.
You'll see how these features work together to make the sled a versatile addition to your table saw.
EXPLORE THE PRECISION TABLE SAW CUTOFF SLED → A Feature-Packed Crosscut Sled for Your Workshop
