Build a Precision Table Saw Cutoff Sled for Accurate Crosscuts
There's a persistent idea in woodworking that bigger is always better. Bigger table saws, wider jointers, and more powerful motors all have their appeal.
But when it comes to a table saw cutoff sled, I've found that it's not simply about making the sled bigger. It's about providing support where you need it and adding features that make the sled more useful.
That's exactly what makes this shop-built cutoff sled different.

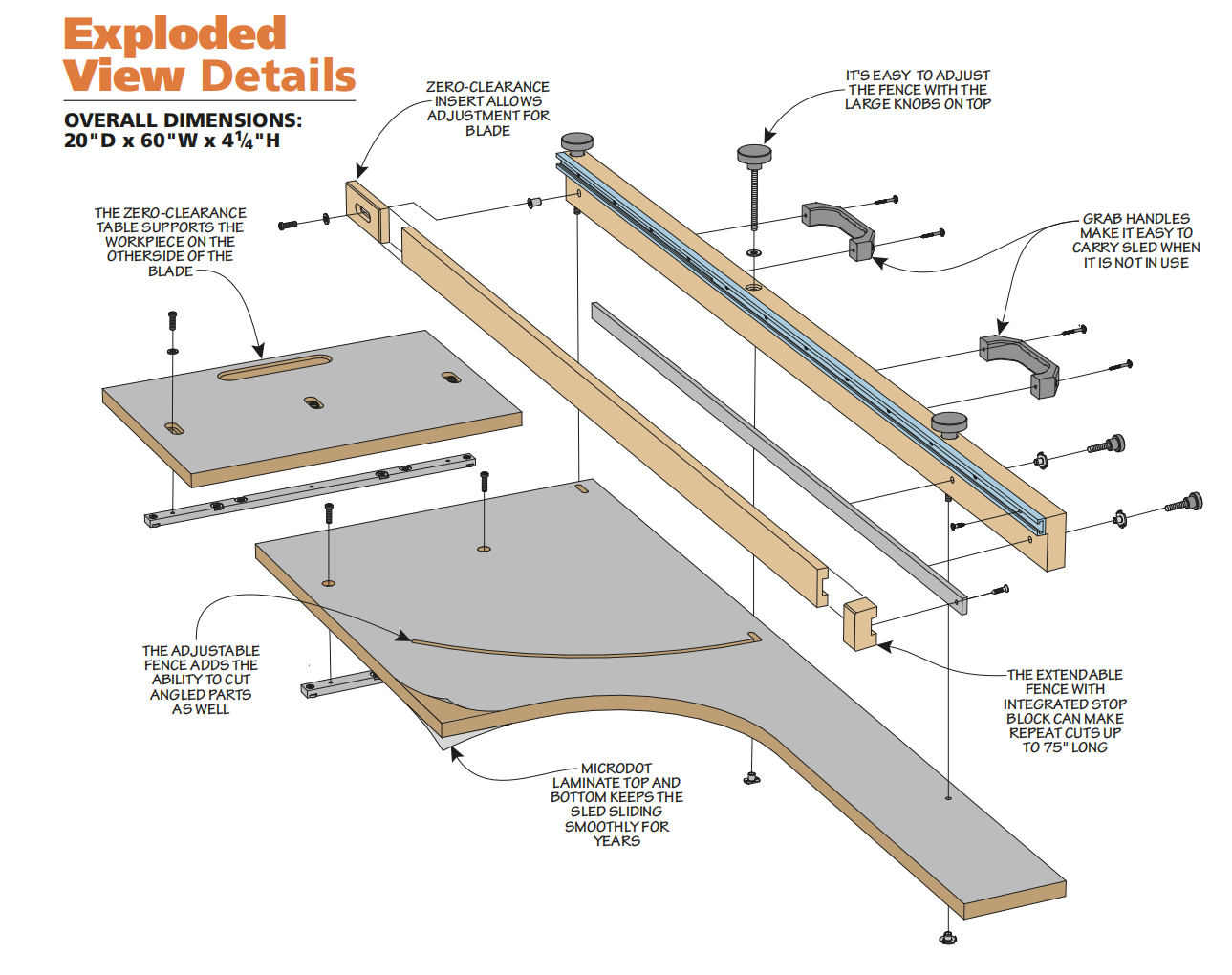

The oversized base provides plenty of support for crosscutting wide panels and long workpieces. But the real advantages are in the details: a pivoting fence for angled cuts, adjustable stop blocks for repeatable results, a full-length T-track for accessories, and a zero-clearance auxiliary table.
It's the kind of table saw upgrade that quickly becomes one of the most-used jigs in your workshop.
What Makes This Table Saw Cutoff Sled Different?
A basic crosscut sled is one of the first table saw jigs many woodworkers build. It provides a stable platform for supporting workpieces and making accurate crosscuts.
But this design goes several steps further.
The sled combines a large, stable work surface with adjustable components that allow it to handle a variety of cutting tasks.
Some of the most useful features include:
- Pivoting fence: Adjusts for angled crosscuts and miters.
- Adjustable stop blocks: Make repeated cuts to the same length.
- Extension arm: Provides support for longer cutting measurements.
- Full-length T-track: Accepts shop-made stops and hold-down accessories.
- Zero-clearance auxiliary table: Supports workpieces close to the blade to help reduce tearout.
- Laminated MDF construction: Provides a smooth, stable base that resists seasonal wood movement.
Together, these features make the sled useful for everything from cabinet parts and furniture components to smaller pieces that benefit from controlled, repeatable cuts.
A Stable MDF Base for Accurate Cuts

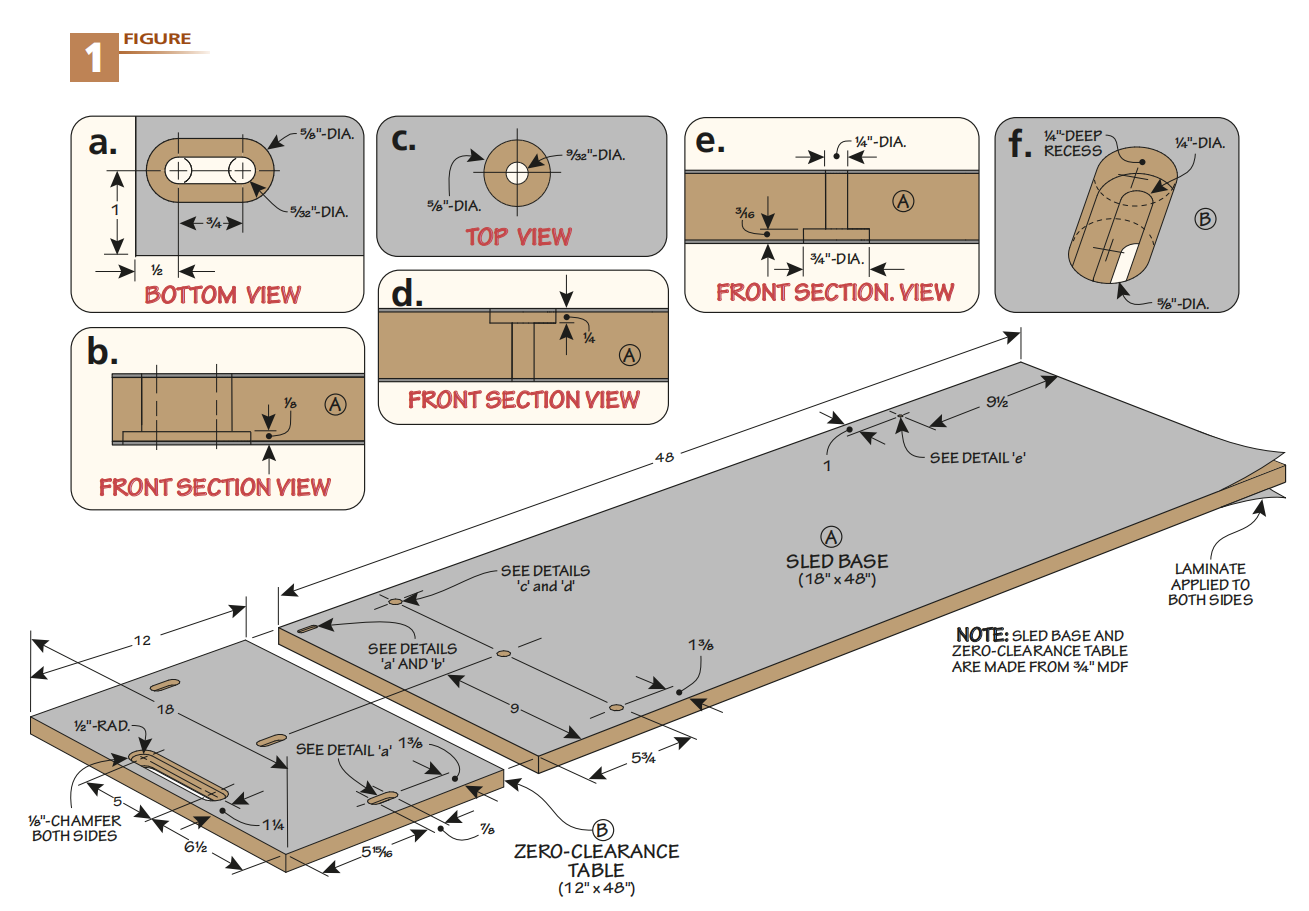

The foundation of the sled is a large MDF base.
MDF is a good choice for this application because it's flat, uniform, and doesn't have the grain-direction concerns associated with solid wood.
Unlike a solid-wood panel, it won't expand and contract significantly across the grain as humidity changes.
To improve durability and help the sled slide smoothly over the cast-iron table saw surface, the top and bottom are covered with MicroDot plastic laminate.
The laminate is applied with contact cement and trimmed flush after bonding.
Because the sled is relatively large, accuracy during construction is especially important. Small alignment errors can become more noticeable over the full width of the jig.
The miter-slot runner and fence mounting locations establish the sled's relationship to the saw blade, so these components need careful attention.

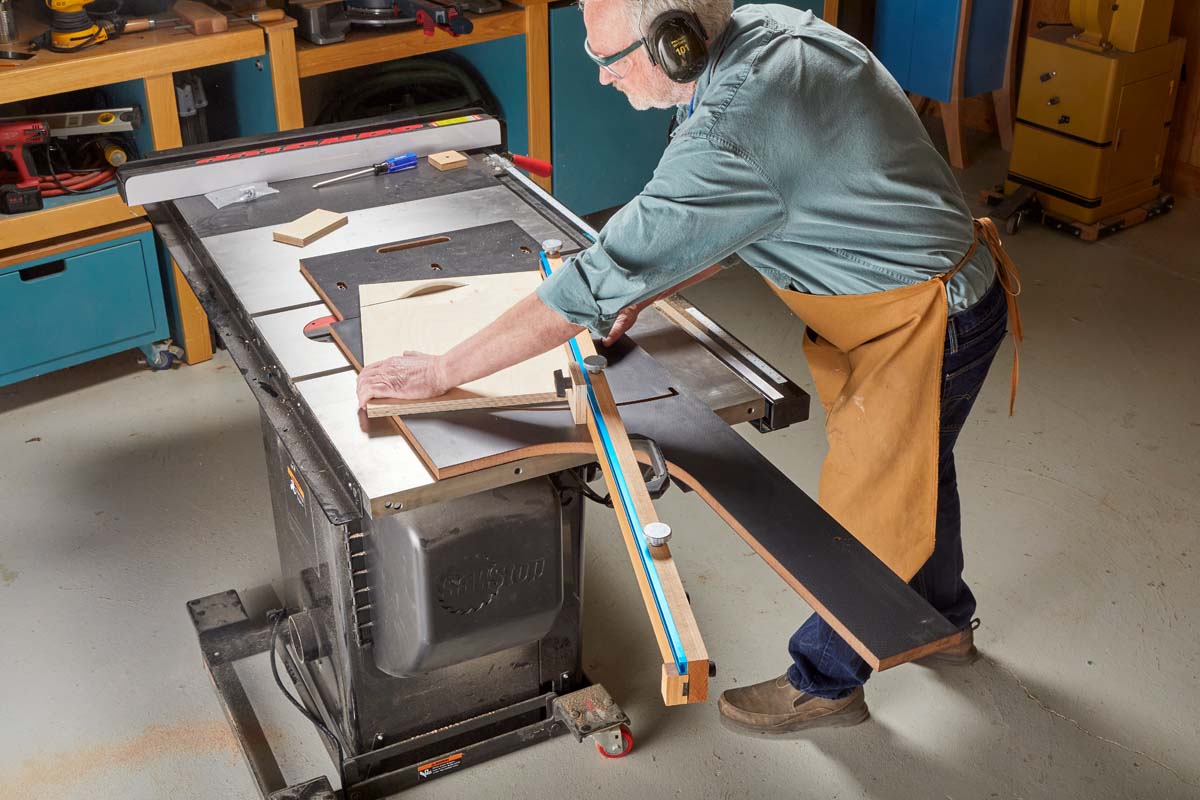

A Pivoting Fence for Straight and Angled Crosscuts
One of my favorite features is the adjustable pivoting fence.
On a conventional crosscut sled, the fence is typically fixed at 90° to the blade.
That's ideal for square crosscuts, but it limits the sled's versatility.

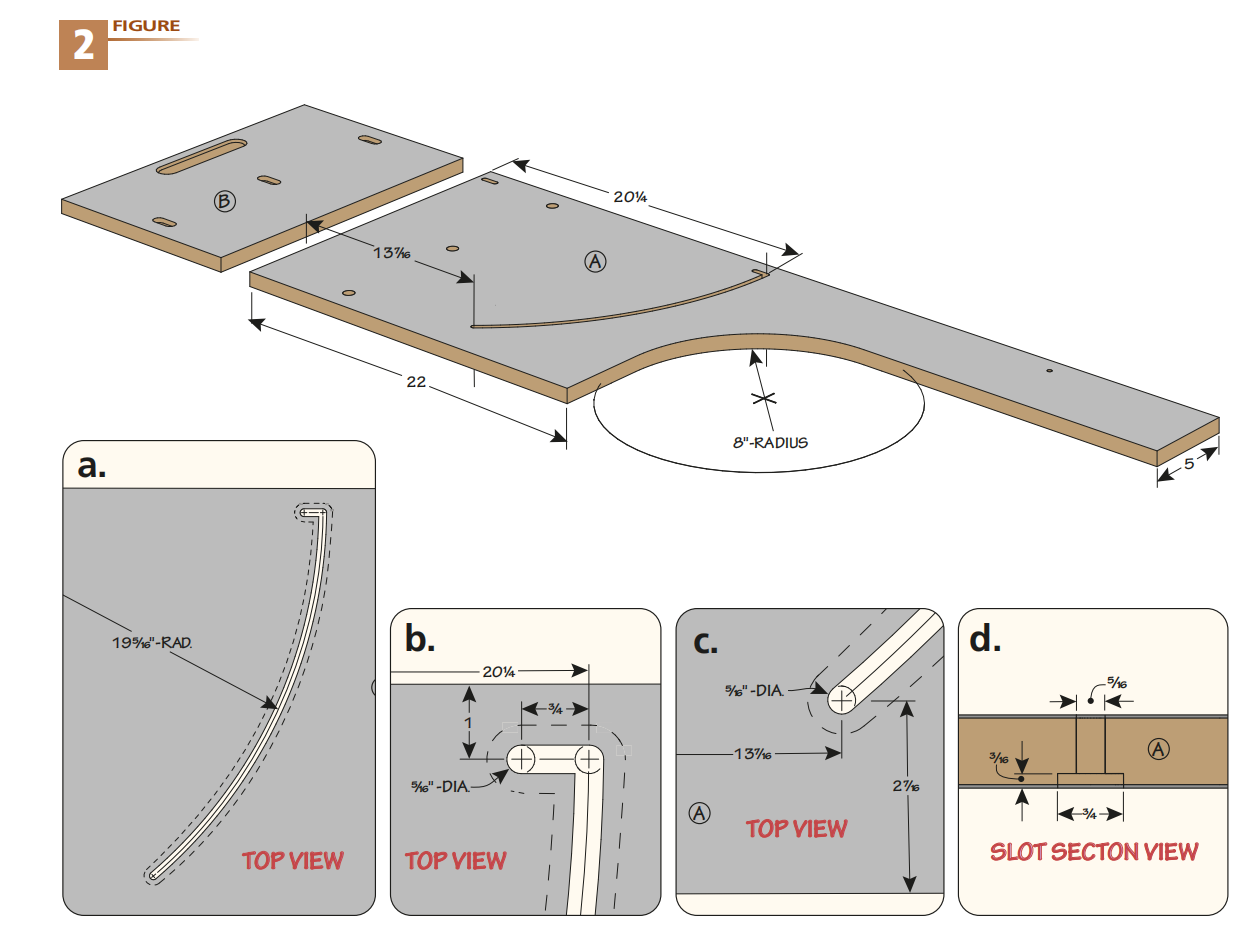

This design uses a curved adjustment slot in the base, allowing the fence to pivot for angled cuts.

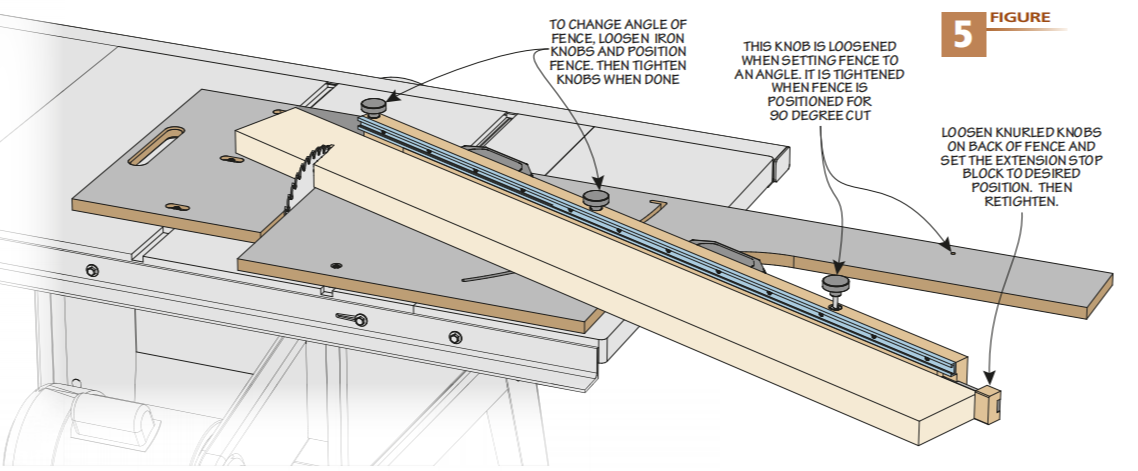

To change the cutting angle, loosen the fence knobs, pivot the fence to the desired position, and tighten the knobs to lock it in place.
The curved slot is made using a router trammel, which produces a consistent arc around the fence's pivot point.

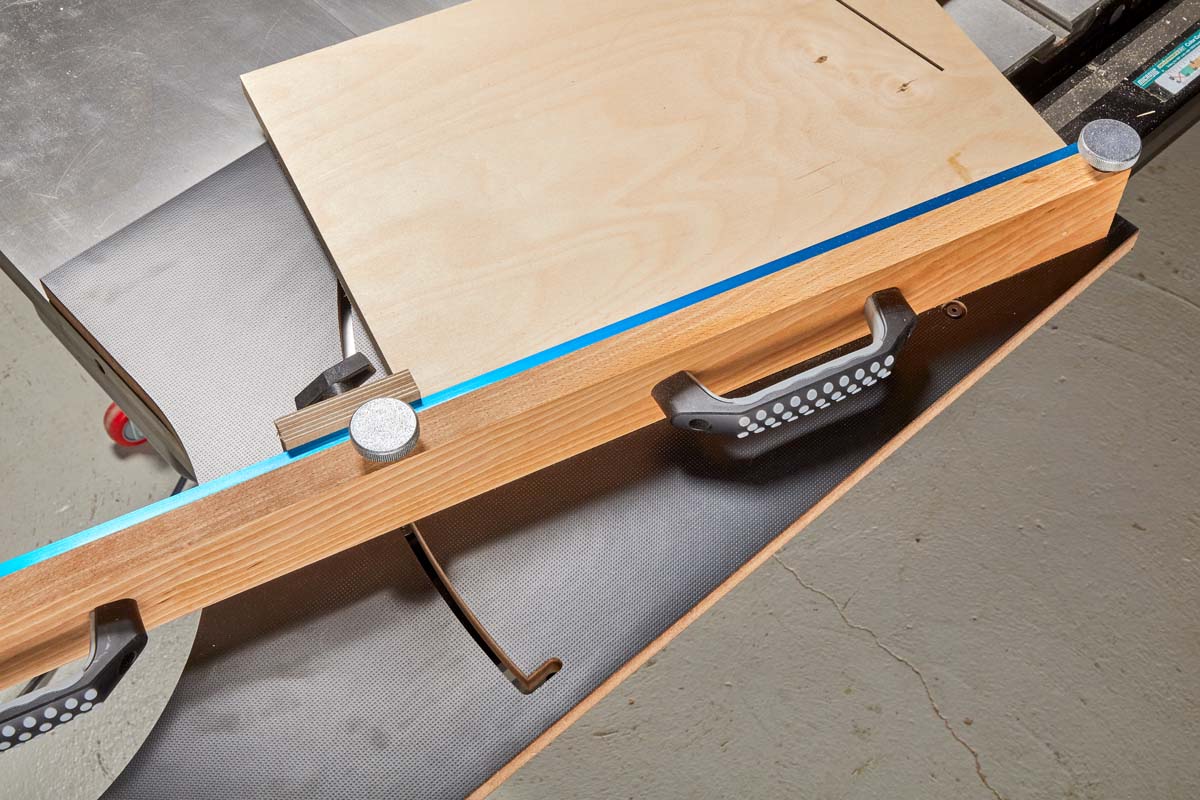

A short extension, or tail, on the adjustment slot helps return the fence to its 90° position.
This makes the sled particularly useful for projects that require both square and angled crosscuts.
For critical joinery, it's still worth checking the fence angle with an accurate square or angle gauge before making the final cut.

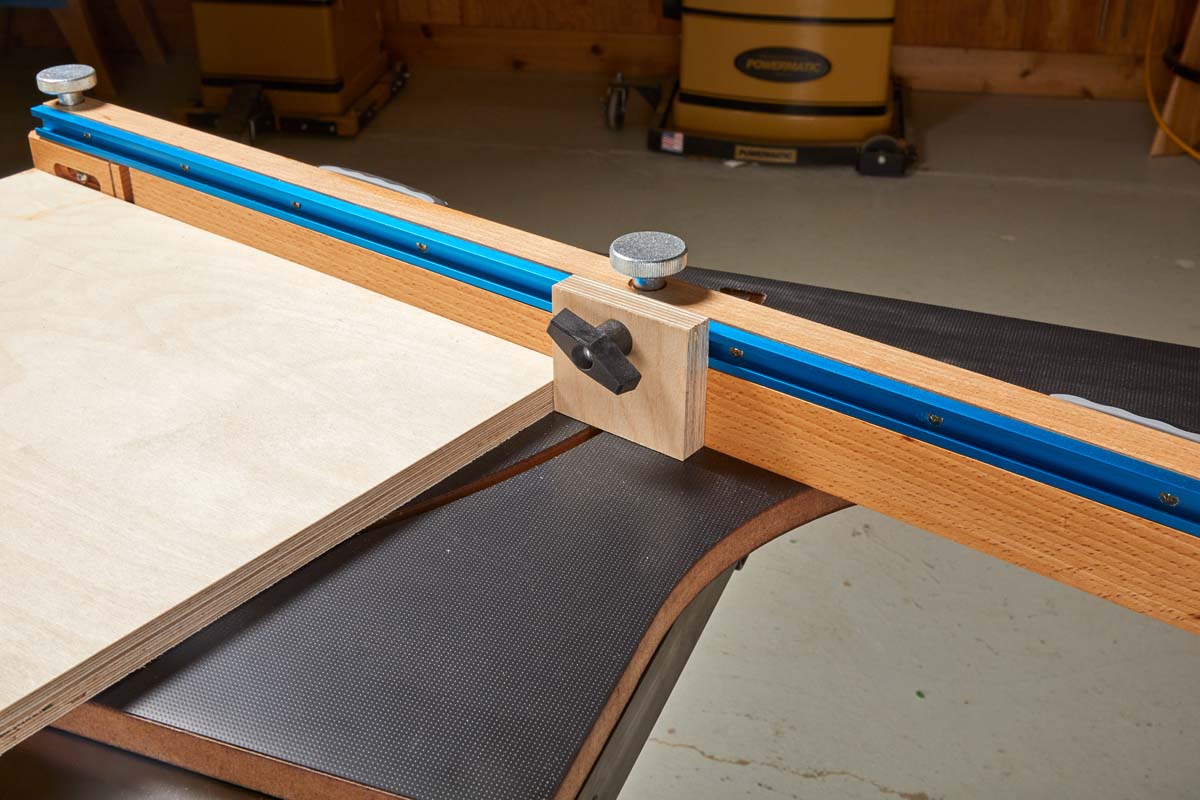

Add a T-Track for Stops and Hold-Downs
Another feature that makes this sled so versatile is the full-length T-track.
The track provides an easy way to install and reposition accessories without modifying the sled.
You can add shop-made stop blocks for repeatable cuts or compatible hold-downs to help secure workpieces.
This is especially helpful when cutting multiple parts to the same length.
Instead of measuring and marking every workpiece, you can set a stop once and make consistent cuts across an entire batch.
Just make sure stops and hold-downs are positioned clear of the blade and don't trap loose cutoff pieces against it.
Make Repeatable Cuts with the Extension Stop

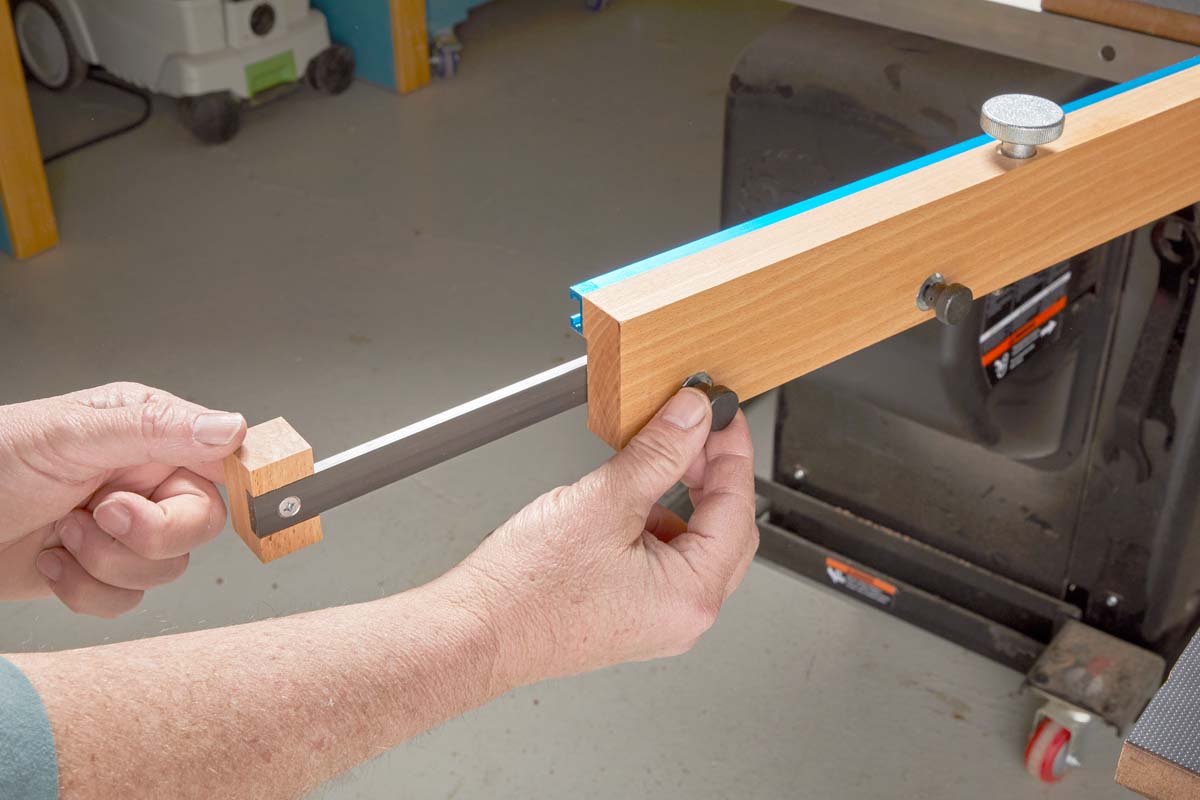

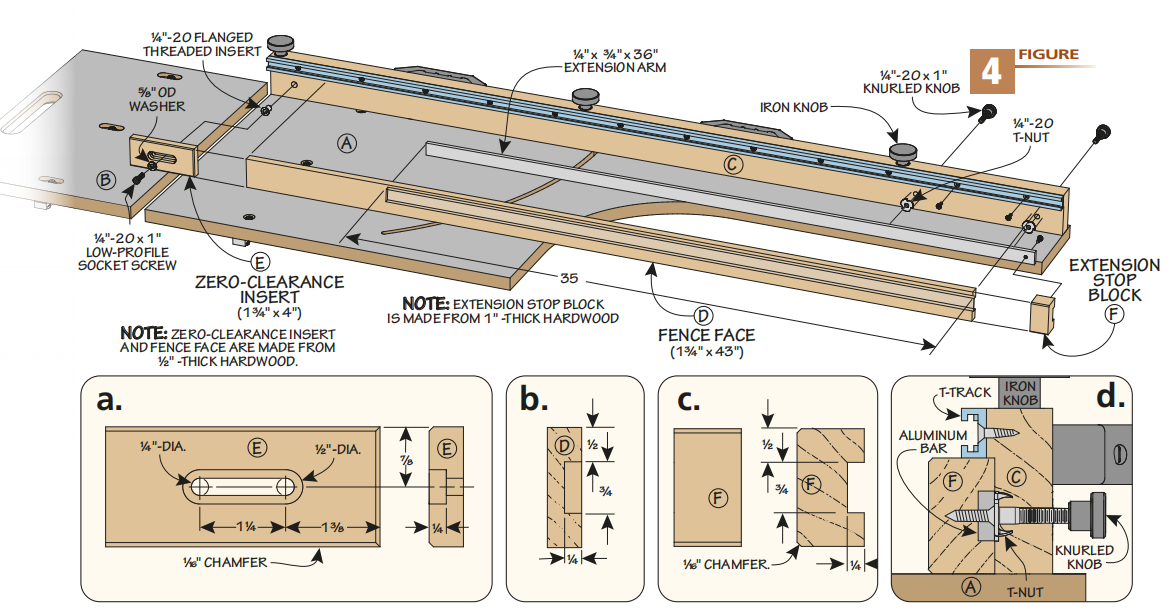

The fence also includes an extendable stop block for longer workpieces.
This clever feature extends the measuring and stop-block capacity of the sled without requiring an excessively long fixed fence.
The extension arm slides within the fence and locks in place with threaded knobs.
An adjustable stop block at the end provides a reference for making repeatable cuts.
The extension can reach nearly three feet beyond the main fence, giving you additional capacity for longer parts.
And when the stop isn't needed, it can be repositioned out of the way.
This is a useful feature for cutting matching furniture components, cabinet parts, and other workpieces that need consistent lengths.
Zero-Clearance Support for Cleaner Cuts
A good crosscut sled should do more than guide the workpiece accurately. It should also support the wood fibers close to the blade.
That's where the zero-clearance auxiliary table comes in.
The auxiliary table provides additional support for workpieces, particularly smaller parts.
Its adjustable mounting arrangement allows it to be positioned accurately relative to the saw blade.
The fence also incorporates a replaceable zero-clearance insert.
By supporting the wood close to the cutting edge, these features help reduce tearout and produce cleaner crosscuts.
They're especially useful when working with plywood, veneered panels, and hardwoods that are prone to splintering.

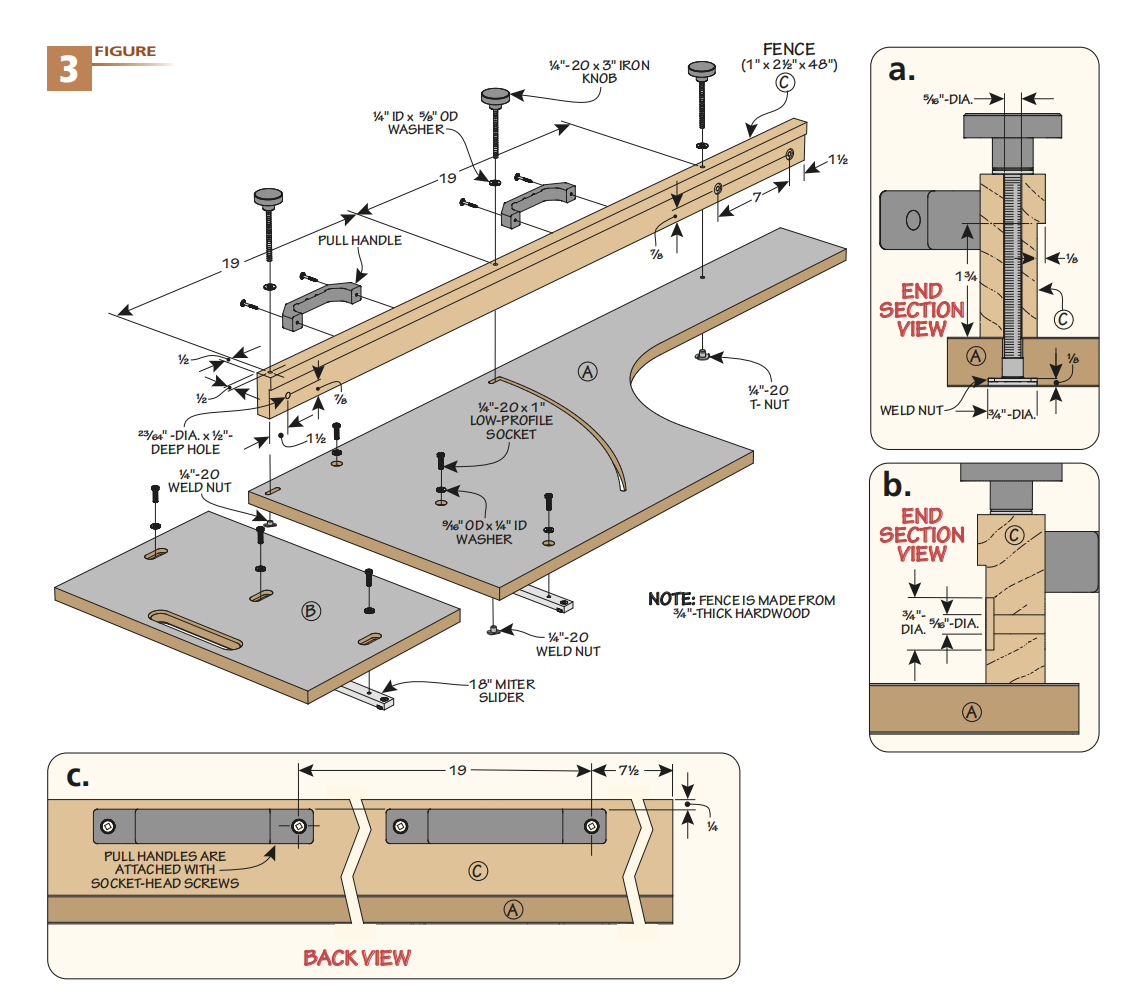

Build a Fence with More Features
At first glance, the sled fence looks like a straightforward hardwood assembly.
But a closer look reveals several useful details.
The fence is built from straight, dry hardwood. The original design uses European beech, although other stable hardwoods can work well.
A recessed area along the face accommodates the adjustable accessories.
The fence also includes mounting points for the extension arm and the replaceable zero-clearance insert.
Threaded knobs allow the fence and accessories to be adjusted and locked securely.
It's a thoughtful design that combines the accuracy of a traditional crosscut sled with the flexibility of several specialized table saw jigs.
Fine-Tune the Sled for Your Table Saw
After assembling the major components, the final step is adjusting the sled to work with your saw.
The runner should slide smoothly in the miter slot without noticeable side-to-side play.
The fence needs to be aligned accurately to the blade for square crosscuts, and the pivoting mechanism should move freely before being locked into position.
You'll also want to adjust the zero-clearance components so they provide support close to the blade without interfering with it.
Make a series of test cuts using scrap material to confirm the setup.
For square crosscuts, check the results with an accurate square. For repeatable cuts, verify that the stop block remains securely positioned.
Taking the time to fine-tune these details is what turns a good sled into a dependable precision jig.
Get the Complete Table Saw Cutoff Sled Plans
This sled is more involved than a basic plywood crosscut jig, but the additional features make it a worthwhile workshop project.
The laminated MDF base provides stability, while the pivoting fence, T-track, extension stop, and zero-clearance accessories give you the flexibility to handle a wide range of crosscutting tasks.
And once the sled is built and adjusted, you'll have a dependable accessory for furniture building, cabinetmaking, and precision joinery.

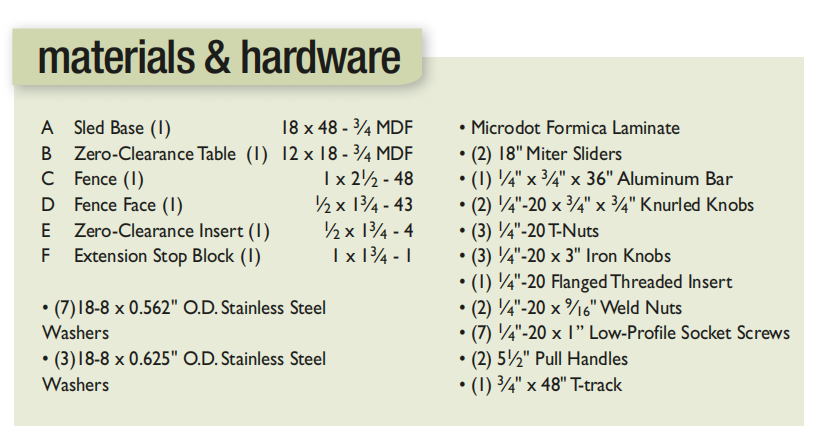

The complete step-by-step woodworking plans include the construction drawings, dimensions, materials, hardware details, and assembly instructions needed to build your own.
