Wooden Wheel Sanding Jig

DIY Drill Press Sanding Jig: How to Sand Wooden Wheels

Making wooden wheels for toys and other small woodworking projects is easy with a hole saw. The challenge comes afterward. Hole saws often leave rough edges that need to be sanded smooth, especially when you're making a large batch of wheels.

This shop-made drill press sanding jig makes the job faster and more consistent. It uses a simple pivoting arm to hold each wheel against a sanding drum, allowing you to smooth the edges without having to hold the small workpiece directly against the abrasive.

How the Wooden Wheel Sanding Jig Works

The jig consists of an auxiliary base that attaches to the drill press table and a pivoting wooden arm.

A carriage bolt, washer, and star knob at the end of the arm hold the wooden wheel in position while allowing it to rotate.

A curved slot in the auxiliary base guides the arm through a smooth arc, making it easy to bring the wheel into contact with the sanding drum.

This arrangement provides better control over the sanding process and helps produce a smooth, consistent edge around the wheel.

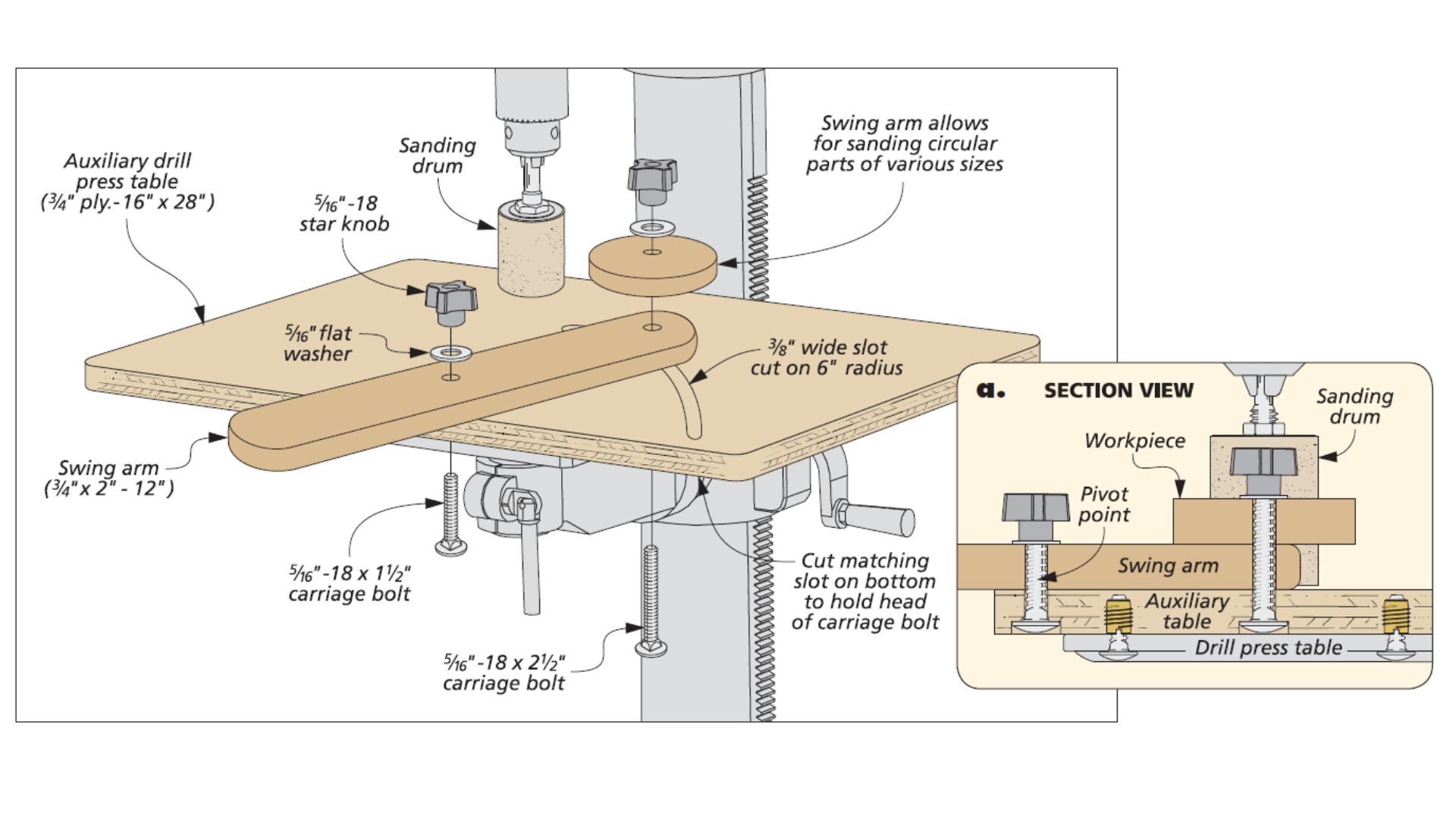

Diagram for how to build Wheel Jig for Drum Sander

Build the Drill Press Wheel Sanding Jig

The jig uses a few basic components:

  • Auxiliary base: A flat wooden platform that attaches securely to the drill press table.
  • Pivoting arm: A wooden arm that swings the wheel toward the sanding drum.
  • Carriage bolt: Serves as an axle for the wooden wheel.
  • Washer and star knob: Hold the wheel in place while allowing it to turn.
  • Curved slot: Guides the pivoting arm through its range of movement.

The jig is designed to work with a sanding drum mounted in the drill press chuck.

Refer to the construction drawing for the arrangement of the pivoting arm, curved slot, and wheel-mounting hardware.

How to Sand Wooden Wheels with a Drill Press

Once the jig is assembled and secured to the drill press table, sanding the wheels is straightforward.

Step 1: Mount the Wooden Wheel

Slip the wooden wheel over the carriage bolt at the end of the pivoting arm.

Install the washer and tighten the star knob just enough to hold the wheel securely while still allowing it to rotate freely.

Step 2: Position the Wheel Against the Sanding Drum

With the sanding drum properly installed and the jig secured, turn on the drill press at an appropriate speed for the sanding attachment.

Slowly swing the pivoting arm toward the sanding drum until the edge of the wooden wheel makes light contact with the abrasive.

Avoid forcing the wheel into the drum. Light sanding pressure provides better control.

Step 3: Rotate the Wheel for an Even Edge

While controlling the pivoting arm, rotate the wheel against the sanding drum to smooth its entire circumference.

The key is to keep the wheel moving. Holding it in one position for too long can create a flat spot on the edge.

Continue rotating the wheel until the rough surface left by the hole saw is smooth and even.

Step 4: Repeat for Additional Wheels

Once the first wheel is finished, turn off the drill press and wait for the drum to stop before removing it.

Install the next wheel and repeat the process.

This setup is especially handy when making several matching wheels for wooden toys.

A Simple Jig for Smoother Wooden Toy Wheels

A drill press equipped with a sanding drum is a useful tool for shaping and smoothing small wooden parts. Adding this pivoting-arm jig makes it even more versatile.

The jig supports the wheel, controls its movement toward the sanding drum, and makes it easier to sand the entire edge evenly.

For anyone who regularly builds wooden toys, this simple DIY wheel sanding jig is a practical addition to the workshop.

Woodworking tip submitted by Robert Curtis, Big Lake, Minnesota.
