Kreg Rebel Pocket Hole Joiner Review
When I think of Kreg, pocket hole joinery is one of the first things that comes to mind. The company offers a wide variety of pocket hole jigs, from simple drilling guides to more elaborate benchtop systems.
But the Kreg Rebel Pocket Hole Joiner takes a different approach.
Rather than using a separate drill and a conventional pocket hole jig, the Rebel combines the drilling mechanism and workpiece guides into one battery-powered tool.
It's one of the more interesting pocket hole tools I've come across, especially for woodworkers who rely on pocket hole joinery for cabinet construction, furniture projects, and shop fixtures.
Here's a closer look at how it works and what makes it different.
What Is the Kreg Rebel Pocket Hole Joiner?
The Rebel is an all-in-one, cordless pocket hole drilling system.
With a conventional pocket hole jig, you position the workpiece in the jig and use a separate drill to bore the angled pocket hole.
The Rebel incorporates its own motor and drill bit into a movable carriage.
A lever controls the carriage, allowing you to advance the bit into the workpiece.
The result is a self-contained tool designed to simplify the pocket hole drilling process.
Key Features
The Kreg Rebel includes several features designed to make setup and drilling more convenient:
- Battery-powered motor: Eliminates the need for a separate drill during pocket hole cutting.
- Lever-operated carriage: Advances the drill bit into the workpiece.
- Adjustable workpiece settings: Accommodate different stock thicknesses.
- Edge guide: Helps position the pocket holes consistently.
- Narrow rail guide: Helps prevent thin workpieces from shifting sideways.
- Dust collection box: Captures chips and sawdust during drilling.
- Vacuum port: Allows a dust collection hose to be connected.
- Retractable rear legs: Support the back of the tool during use.
These features make the Rebel a different experience from working with a traditional pocket hole jig.
How to Set Up the Kreg Rebel
Setting up the Rebel starts with adjusting the tool to match the thickness of your workpiece.
There are two thickness settings to make: one on the movable carriage and another at the front of the joiner.
Once these adjustments are made, position the edge guide to locate the pocket hole.
With the workpiece properly positioned, you're ready to drill.
The setup is straightforward, although the tool's operating motion takes a little getting used to if you're accustomed to a conventional pocket hole jig.
Lever-Operated Pocket Hole Drilling
The Rebel's most distinctive feature is its lever-operated drilling system.
Instead of holding a drill and advancing a stepped bit through a guide, you control the built-in motor and carriage with the lever.

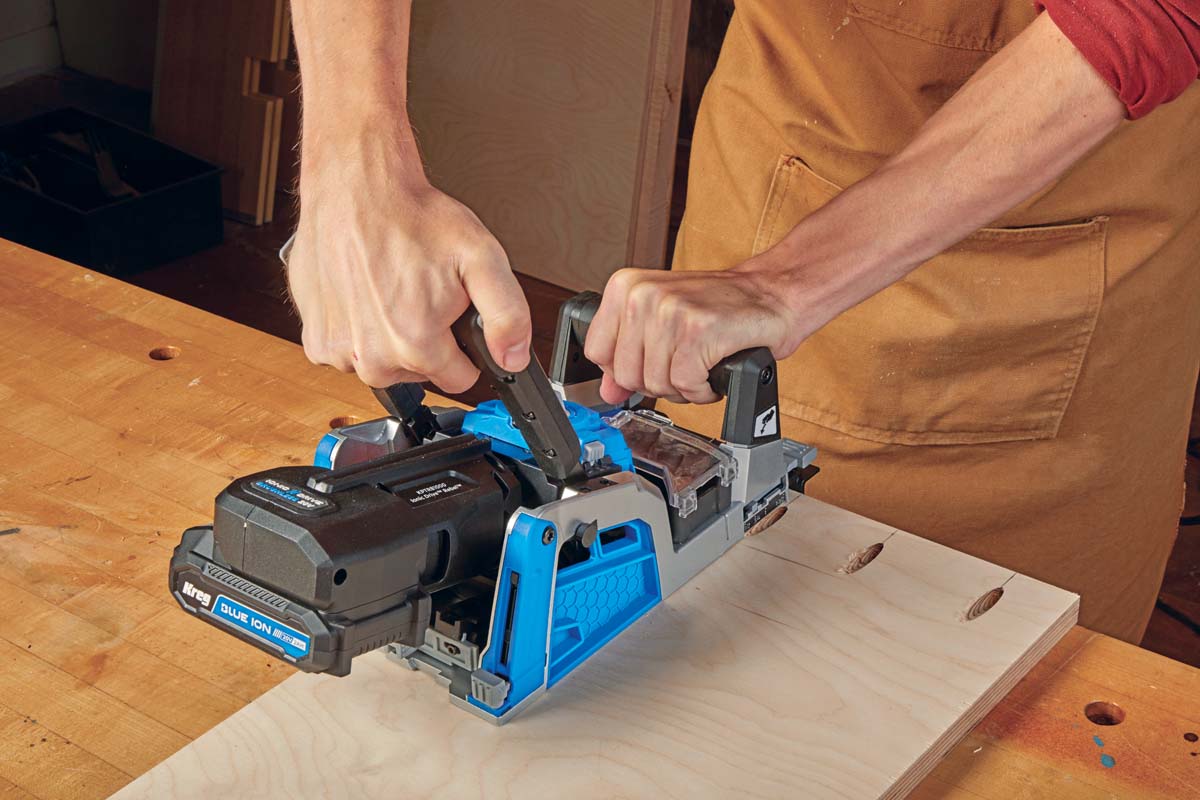

Press the gray button on the lever handle to start the motor.
Then push the lever forward to advance the carriage and drill the pocket hole.
This arrangement combines the motor controls and drilling movement into one operation.
Accessing the Drill Bit
The Rebel also provides a way to access the drill bit for maintenance or replacement.

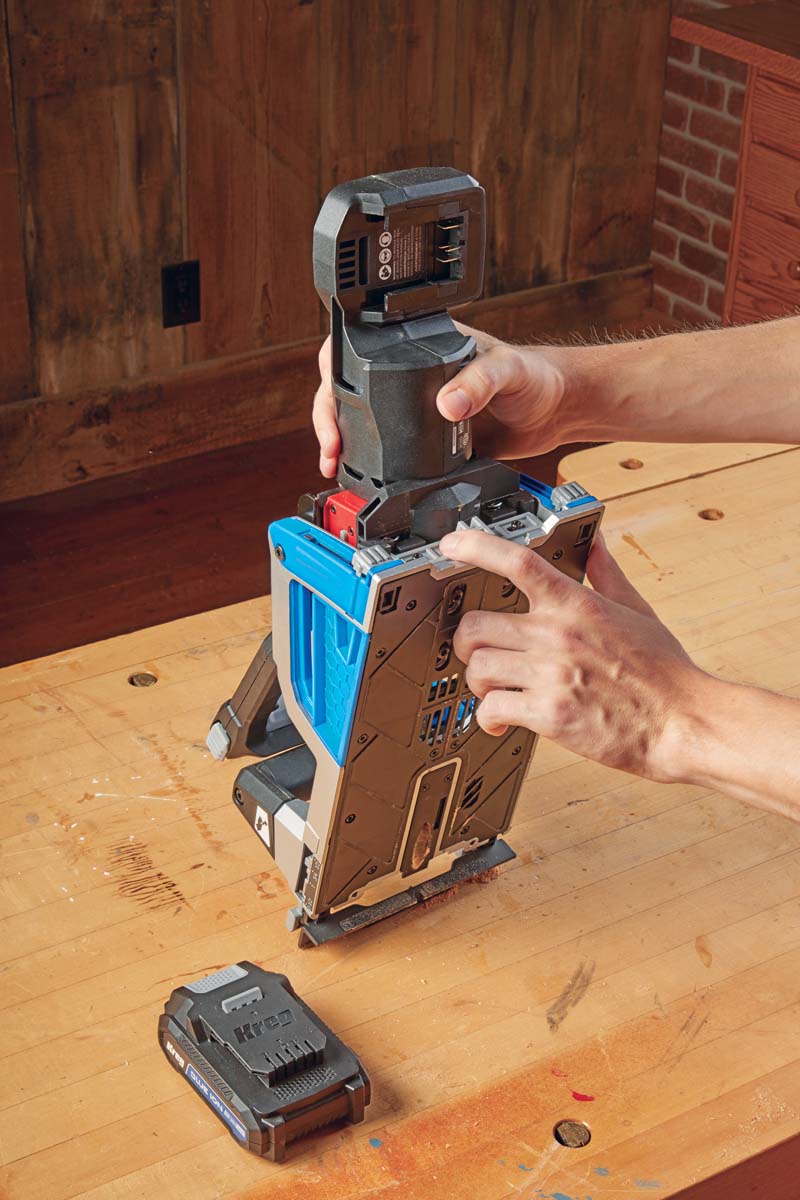

Fold the lever down and press the release switch to free the motor assembly.
This allows access to the bit without disassembling the entire tool.
Guides Help Keep Workpieces in Position
Accurate pocket hole joinery depends on holding the workpiece securely and positioning the holes consistently.
The Rebel includes an adjustable edge guide to help establish the drilling location.
For narrow workpieces, such as cabinet face frame rails, a separate rail guide helps prevent the stock from moving side to side.
This is a useful feature when drilling pocket holes in relatively thin or narrow parts.
The tool also has retractable legs at the rear to provide additional support during drilling.
Built-In Dust Collection
Drilling pocket holes creates a surprising amount of sawdust and chips.
The Rebel addresses this with a detachable dust collection box.
As the bit drills into the workpiece, the waste collects in the box rather than scattering across the work surface.
For additional dust control, the collection system includes a port for connecting a vacuum hose.
This gives you the option of using the tool with its self-contained collection box or attaching a shop vacuum.
It's a convenient feature, particularly when drilling a series of pocket holes.
Kreg Rebel Pocket Hole Joiner Performance
The Rebel offers a quick setup for pocket hole joinery, and I found it easy to use once I became familiar with the lever-operated drilling motion.
The combination of the built-in motor, adjustable guides, and dust collection makes it a convenient alternative to using a separate drill and jig.
But there's an important consideration: Not every woodworker needs this level of equipment for pocket hole joinery.
If you only use pocket screws occasionally, a smaller, conventional pocket hole jig may be all you need.
On the other hand, if pocket hole joinery is a regular part of your woodworking, the Rebel's integrated design may be appealing.
Is the Kreg Rebel Worth It?
The Kreg Rebel Pocket Hole Joiner is an interesting option for woodworkers looking for a more self-contained approach to drilling pocket holes.
Its biggest advantage is convenience.
The motor, drilling carriage, workpiece guides, and dust collection are all part of the same tool.
That can make the drilling process feel more streamlined than using a separate drill and jig.
However, it's also a more specialized tool than a basic pocket hole jig.
For occasional pocket hole joinery, a smaller jig is probably the more practical choice.
But for woodworkers who frequently build cabinets, face frames, and other projects using pocket screws, the Rebel may be worth considering.
The bottom line: The Kreg Rebel offers quick setup and convenient operation in an all-in-one pocket hole drilling system. Whether it's worth the investment depends largely on how often you use pocket hole joinery in your shop.
