How to Set Up and Use a Lock Miter Router Bit
A lock miter router bit is one of those tools that promises to make a tricky woodworking joint much easier. And when it's set up correctly, it delivers.
With a single router table setup, you can cut both halves of a locking miter joint. The bit creates a 45° miter with an interlocking tongue-and-groove profile that helps align the parts during assembly and provides additional glue surface.
It's a useful joint for building boxes, cabinets, and even thick furniture legs.
But there's a catch. Getting the bit set up correctly can be frustrating.
The bit height and router table fence position have to work together, and both depend on the thickness of your workpieces. A small adjustment to either setting can affect how the joint fits.
For a long time, that was enough to keep my lock miter bit sitting in a drawer. Fortunately, a simple setup gauge makes the process much easier.
Why Lock Miter Router Bits Are Difficult to Set Up
Unlike a straight bit or a basic roundover bit, a lock miter bit cuts a complex profile that must line up precisely with its mating piece.
One workpiece is routed flat on the router table. The mating piece is routed vertically against the fence.
When the two pieces come together, the angled faces form a miter while the tongue-and-groove profiles interlock.
The advantage is a joint that's easier to align during glue-up and offers more glue surface than a plain miter.
The challenge is that the bit height and fence position must be coordinated.
You can make a setup block after dialing in the bit, but that block is most useful when you're working with material of the same thickness.
Change the stock thickness, and you may need to adjust the setup again.
That's where a dedicated lock miter setup gauge comes in.
Use a Lock Miter Setup Gauge
The Infinity Tools Lock Miter Master Jigs provide a convenient reference for setting the bit height and router table fence.
The gauges are designed to work with different sizes of lock miter bits. They use alignment marks to help position the cutter relative to the center of your workpiece.
Attach the Gauge to the Router Bit
Start with the router unplugged.
Install the lock miter bit securely in the router table, following the bit manufacturer's instructions.

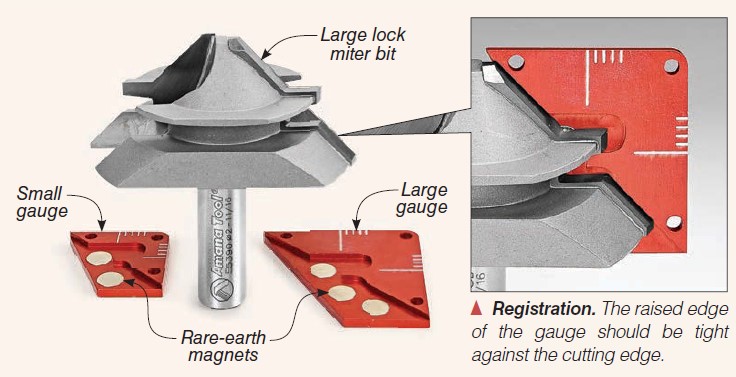

The setup gauge attaches magnetically to the cutter.
Position it so the recessed area on the gauge fits against the angled cutting edge. The recess should also tuck beneath the groove-cutting portion of the bit.
Make sure the gauge is seated properly before making any adjustments.
The longer horizontal and vertical reference lines are used to center the joint on the workpiece. The shorter lines provide references for offset joints.
Step 1: Set the Router Bit Height
Begin by marking the center of your workpiece's thickness.
This centerline provides the reference for adjusting the bit height.
With the router unplugged and the setup gauge attached, place the workpiece flat on the router table beside the bit.
Raise or lower the router bit until the centerline on the workpiece aligns with the long horizontal reference line on the gauge.
Take your time with this adjustment. Centering the bit correctly is important for producing a joint with matching profiles.
Once the lines are aligned, lock the router's height adjustment.
Step 2: Adjust the Router Table Fence
With the bit height established, the next step is to position the router table fence.
This adjustment uses the same centerline on your workpiece, but the board is held vertically against the fence.
Before making the adjustment, rotate the router bit by hand so the cutting edge and attached gauge are square to the router table fence.
This is important for getting an accurate reference.
Hold the workpiece vertically against the fence and move the fence until the centerline on the board aligns with the long vertical reference line on the gauge.
Lock the fence in position once the lines match.
With the bit height and fence position established, remove the setup gauge before operating the router.
WOODSMITH TIP: Start with Consistent Stock Thickness. A lock miter joint depends on accurately matching the profiles of the two workpieces. For the best results, mill all the parts to a consistent thickness before setting up the bit. Even small variations can affect how the completed joint fits.
Step 3: Rout the Lock Miter Joint
With the router table adjusted, you're ready to make the two mating cuts.
I recommend starting with scrap pieces that are the same thickness as your project parts. A test joint lets you confirm the fit before routing the actual workpieces.
Make the Horizontal Cut
For the first half of the joint, place the workpiece flat on the router table and feed it past the bit.
Keep the workpiece firmly against the fence and table throughout the cut.
A backer board helps support the wood fibers as the bit exits the workpiece, reducing the chance of tearout.
Make the Vertical Cut
The mating piece is routed standing on edge against the fence.
Because the workpiece is held vertically, proper support is especially important.
Use a suitable vertical routing jig, featherboards, or other workholding accessories to keep the piece stable and maintain consistent contact with the fence.
Follow the bit manufacturer's recommended feed direction and depth-of-cut procedure. Large lock miter bits may require multiple passes, a reduced router speed, and a router table with appropriate guarding.
After routing both pieces, check the fit of the joint.
The profiles should interlock cleanly, with the outside faces meeting at a tight miter.
If necessary, make small adjustments and repeat the test cuts before machining the project parts.
Make Craftsman-Style Table Legs with Lock Miter Joints
One of my favorite applications for a lock miter bit is building thick table legs from thinner stock.
This technique is especially useful when working with quartersawn white oak, a hallmark of traditional Craftsman-style furniture.
Quartersawn oak has distinctive straight grain and ray-fleck figure. But when you make a thick table leg from a solid blank, it's difficult to get that attractive figure on all four faces.
Instead of using a single solid blank, you can build the leg from four separate pieces.
Each piece is oriented so the quartersawn face becomes one of the visible sides of the finished leg.
The lock miter bit cuts interlocking profiles along the edges, allowing the four pieces to come together into a hollow, square leg.
The key is to alternate the mating profiles on the edges so the pieces interlock correctly during assembly.
The setup gauge makes it easier to establish the correct cutter position for these joints.
When assembled, the result is a substantial-looking table leg with attractive quartersawn figure on all four faces.
This is a great way to get the traditional Craftsman appearance without starting with a massive piece of solid oak.
A Router Bit Worth Using More Often
A lock miter router bit can be a valuable addition to your woodworking tool collection.
The interlocking joint helps align parts during assembly and works well for boxes, cabinet corners, and furniture legs.
And while the setup can be intimidating at first, a dedicated gauge makes the process much more manageable.
Once you've established the correct bit height and fence position, you can concentrate on making clean cuts and accurately fitting joints.
For me, that's enough reason to bring the lock miter bit out of the drawer and put it back to work.
