Choosing an Air Compressor: PSI, CFM & Tank Size Explained
The first air compressor I owned was a small, pancake-style model. It worked great for powering a brad nailer and handling occasional jobs around the shop.
But when I started using more demanding air tools, I quickly discovered its limitations.
The compressor could deliver enough pressure, but it couldn't always supply the volume of air needed to keep certain tools running.
That's an important distinction, and one that can make choosing an air compressor confusing.
Whether you're buying your first compressor or upgrading an existing one, understanding a few basic specifications will help you find a model that fits your woodworking needs.
The three most important factors are air pressure (PSI), air flow (CFM), and tank capacity.
Once you understand how these work together, choosing the right compressor becomes much easier.
Understanding Air Compressor PSI, CFM, and Tank Size
Before shopping for an air compressor, it's important to understand how manufacturers rate their performance.
Three specifications tell you most of what you need to know.
PSI: How Much Air Pressure Does the Compressor Produce?
PSI stands for pounds per square inch. It's the measurement used to describe air pressure.
Most common pneumatic tools operate at pressures around 90 PSI, although the exact requirement varies by tool.
A compressor needs to maintain the tool's required pressure while it's operating.
For example, if a tool requires 90 PSI, a compressor capable of producing a maximum pressure of only 90 PSI may not provide much reserve as the tank pressure drops.
That's why it's useful to choose a compressor with a maximum pressure higher than the tool's operating requirement.
A compressor rated for approximately 120 PSI or more provides additional pressure reserve for many common 90-PSI tools.
However, the maximum tank pressure is not the pressure you should automatically send to the tool.
Use the compressor's regulator to set the outlet pressure according to the tool manufacturer's instructions.
CFM: How Much Air Can the Compressor Deliver?
CFM stands for cubic feet per minute.
While PSI tells you the pressure of the air, CFM tells you how much air the compressor can deliver over time.
For many woodworking applications, this is the more important specification.
A brad nailer uses a relatively small amount of air with each shot. But an air-powered sander or spray gun may require a continuous supply of air.
If the compressor can't keep up with that demand, the tool's performance will suffer.
The compressor may also run almost continuously as it struggles to replenish the air supply.
When comparing compressors, look for the SCFM rating at the pressure your tool requires, commonly 90 PSI.
SCFM stands for standard cubic feet per minute. It's a standardized measure of air delivery that makes comparing compressor specifications easier.
Tank Size: How Much Compressed Air Can Be Stored?
The third important factor is tank capacity, usually measured in gallons.
A larger tank stores more compressed air, giving you a greater reserve before the compressor motor needs to run again.
This is especially helpful for tools that use air intermittently.
For example, a larger tank may allow you to drive more nails between compressor cycles.
But there's an important limitation.
A larger tank doesn't mean the compressor can produce more air per minute.
If you're running a tool that consumes air continuously, such as a pneumatic sander, the compressor's CFM output ultimately determines whether it can keep up.
A large tank may delay the pressure drop, but it won't compensate for an undersized pump during extended use.
How PSI, CFM, and Tank Capacity Work Together
These three specifications are closely related.
Think of the tank as a storage reservoir.
The compressor pump fills that reservoir with pressurized air. As you operate a tool, air leaves the tank.
If the tool uses air faster than the compressor can replace it, the pressure in the tank gradually drops.
Once the pressure reaches the compressor's cut-in setting, the motor starts and begins replenishing the supply.
If the tool continues consuming more air than the compressor produces, the available pressure will eventually fall below the tool's operating requirement.
That's why matching a compressor to your tools involves more than looking at maximum PSI or tank size.
For continuous-use tools, adequate CFM is essential.
What Size Air Compressor Do You Need for Woodworking?
The easiest way to choose a compressor is to start with the pneumatic tools you plan to use.
A compressor that works perfectly for a brad nailer may be completely inadequate for an air-powered sander.
Here's how I think about the different sizes.
Small Pancake Compressors for Brad Nailers
If you primarily use pneumatic nailers, staplers, or an occasional blow gun, a small pancake compressor may be all you need.
These compressors are compact, portable, and relatively easy to store.
They're especially convenient for tasks such as attaching cabinet backs, installing trim, or assembling shop projects.
Because nailers use air in short bursts, a small compressor can often handle them without difficulty.
However, a small pancake compressor usually isn't the best choice for continuous-use tools.
Mid-Size Compressors for General Shop Use
If you use several pneumatic tools, a larger portable compressor offers more versatility.
Depending on its CFM rating, a mid-size compressor may handle:
- Brad and finish nailers
- Pneumatic staplers
- Blow guns
- Some air drills
- Certain impact wrenches
- Spray guns with modest air requirements
A larger tank provides additional air storage, while a higher-output pump helps maintain pressure during longer tasks.
This type of compressor can be a practical choice for a woodworking shop that uses air tools regularly but doesn't need to run them continuously.
Larger Compressors for Sanding and Spray Finishing
Some pneumatic tools consume a substantial amount of air.
Air-powered sanders and certain spray guns are good examples.
Because these tools may run for extended periods, they need a compressor capable of delivering a continuous supply of air.
For these applications, focus on the compressor's CFM rating rather than simply choosing the largest tank.
A larger compressor with a higher-output pump can keep up with demanding tools without constantly losing pressure.
If you plan to use pneumatic sanders or spray finishing equipment regularly, check the specific air requirements before purchasing a compressor.

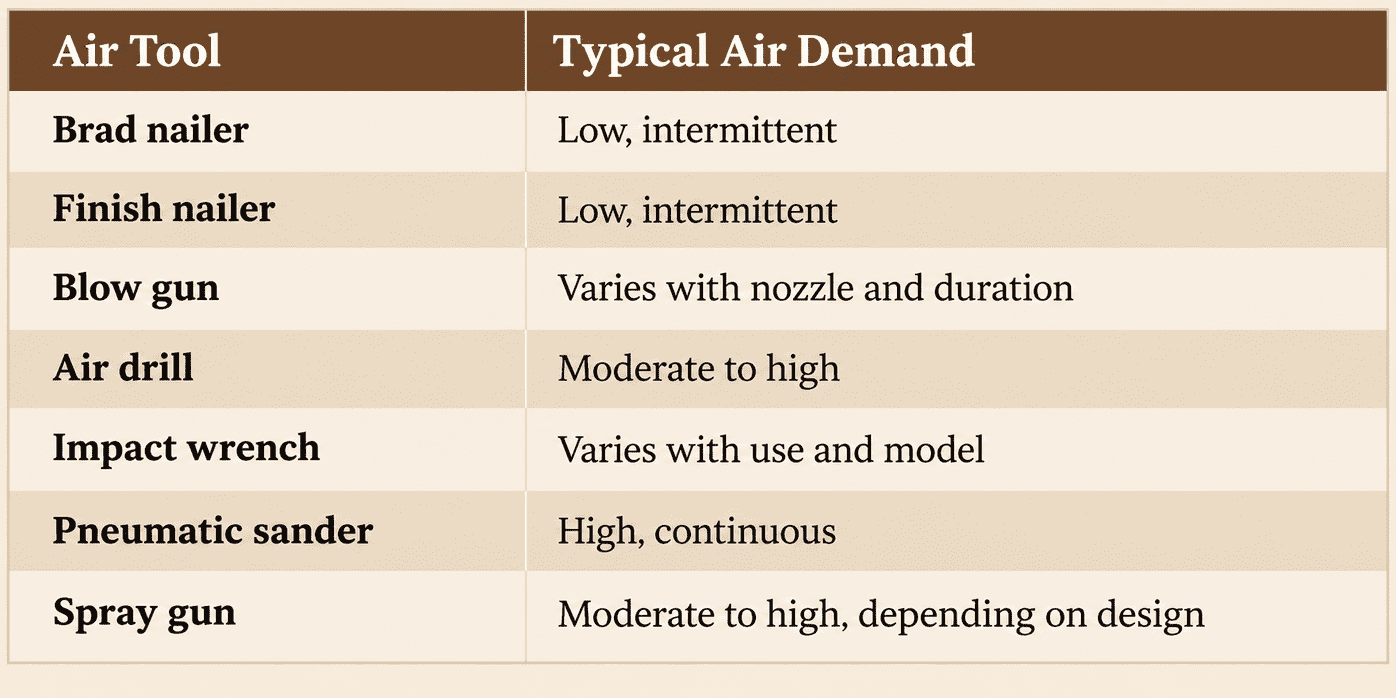

How Much CFM Do Common Air Tools Need?
Different pneumatic tools have very different air requirements.
The table below provides general examples to illustrate the difference between intermittent and continuous air use.
The actual CFM requirement can vary significantly between tools, even within the same category.
For the most accurate match, check the tool's specification label or owner's manual.
When selecting a compressor, compare the tool's required CFM with the compressor's delivered SCFM at the specified operating pressure.
It's also a good idea to allow some additional capacity rather than choosing a compressor that barely meets the requirement.
Consider Air Compressor Noise Levels
Performance isn't the only consideration when choosing an air compressor.
Noise can make a big difference, especially in a small woodworking shop.
Traditional oil-free compressors often run at higher speeds and can be quite loud.
Oil-lubricated compressors, particularly larger belt-driven models, have often been quieter because their pumps operate at lower speeds.
However, modern low-noise oil-free compressors are also available, so pump type alone doesn't tell the whole story.
Look for a Lower Decibel Rating
When comparing compressors, look for the manufacturer's noise rating, expressed in decibels (dB).
A lower decibel rating generally means quieter operation.
This can be especially important if your compressor sits near your workbench or finishing area.
Direct-Drive vs. Belt-Drive Compressors
Another feature to consider is how the motor drives the compressor pump.
Direct-drive compressors are generally compact and have fewer drive components.
Belt-driven models can use a lower pump speed, which may help reduce noise and wear.
Some belt-driven compressors also allow the motor or pump to be serviced separately.
The best choice depends on your budget, available space, and how often you use compressed air.
Check the Electrical Requirements
Before purchasing a larger compressor, make sure your shop's electrical system can support it.
Many small portable compressors operate on a standard 120-volt household circuit.
However, the current requirements vary by model.
Larger compressors may require a dedicated 120-volt circuit or a 240-volt supply.
Always check the manufacturer's voltage and amperage specifications.
Don't assume that a larger compressor will work on an existing outlet simply because the plug looks familiar.
If a new circuit is required, have it installed according to the manufacturer's instructions and applicable electrical codes.
Other Features Worth Considering
Once you've narrowed down the size and performance you need, a few additional features can make a compressor easier to use.
Pressure Regulator and Gauges
A regulator allows you to adjust the pressure delivered to your tools.
Look for a compressor with easy-to-read gauges for both tank pressure and regulated outlet pressure.
Portability
If you frequently move the compressor around the shop, consider its weight, handles, and wheels.
A lightweight pancake compressor is convenient for small jobs, while larger models may be better suited to a permanent location.
Tank Drain and Maintenance
Compressed air contains moisture that can collect inside the tank.
A convenient drain valve makes it easier to remove accumulated water.
Follow the manufacturer's instructions for draining and maintaining the compressor. Never exceed the tank's rated pressure or modify its pressure-relief components.
Air Quality for Spray Finishing
If you plan to use a compressor for spray finishing, consider adding appropriate moisture and oil filtration.
Clean, dry air is important for achieving a quality finish.
The type of filtration needed depends on the compressor, spray equipment, and finish you're using.
Choosing the Best Air Compressor for Your Shop
The right air compressor isn't necessarily the biggest or most expensive model.
It's the one that can reliably supply the air your tools require.
For occasional brad nailing and light shop tasks, a small pancake compressor may be perfectly adequate.
If you use a wider range of pneumatic tools, a mid-size compressor with greater air delivery and storage can offer more flexibility.
And for continuous-use tools like pneumatic sanders or certain spray guns, you'll want a compressor with enough CFM to keep up.
Start by checking your tools' air requirements, then compare compressors based on their delivered CFM, operating pressure, tank capacity, noise level, and electrical needs.
With those specifications in mind, you'll be much better prepared to choose an air compressor that fits the way you work.
