Woodpeckers Joinery Sled Review: One Jig for Multiple Joints
A lot of woodworking happens at the table saw and router table. These tools are central to cutting accurate joinery, but getting the most out of them often requires a collection of specialized jigs.
A tenoning jig for one operation. A 45° sled for another. And perhaps a separate jig for cutting angled grooves or splined miters.
That's where the Woodpeckers Joinery Sled comes in.
Rather than building and storing a different jig for every operation, this adjustable sled is designed to handle several joinery tasks with a single accessory.
Woodpeckers has earned a place in our shop with its cutting tools and accessories, so I was interested to see how this sled compared to the shop-made jigs I regularly use.
What Is the Woodpeckers Joinery Sled?
The Woodpeckers Joinery Sled is an adjustable woodworking jig that rides in the miter slot of a table saw or router table.
It provides a stable platform for holding and guiding workpieces during joinery operations.

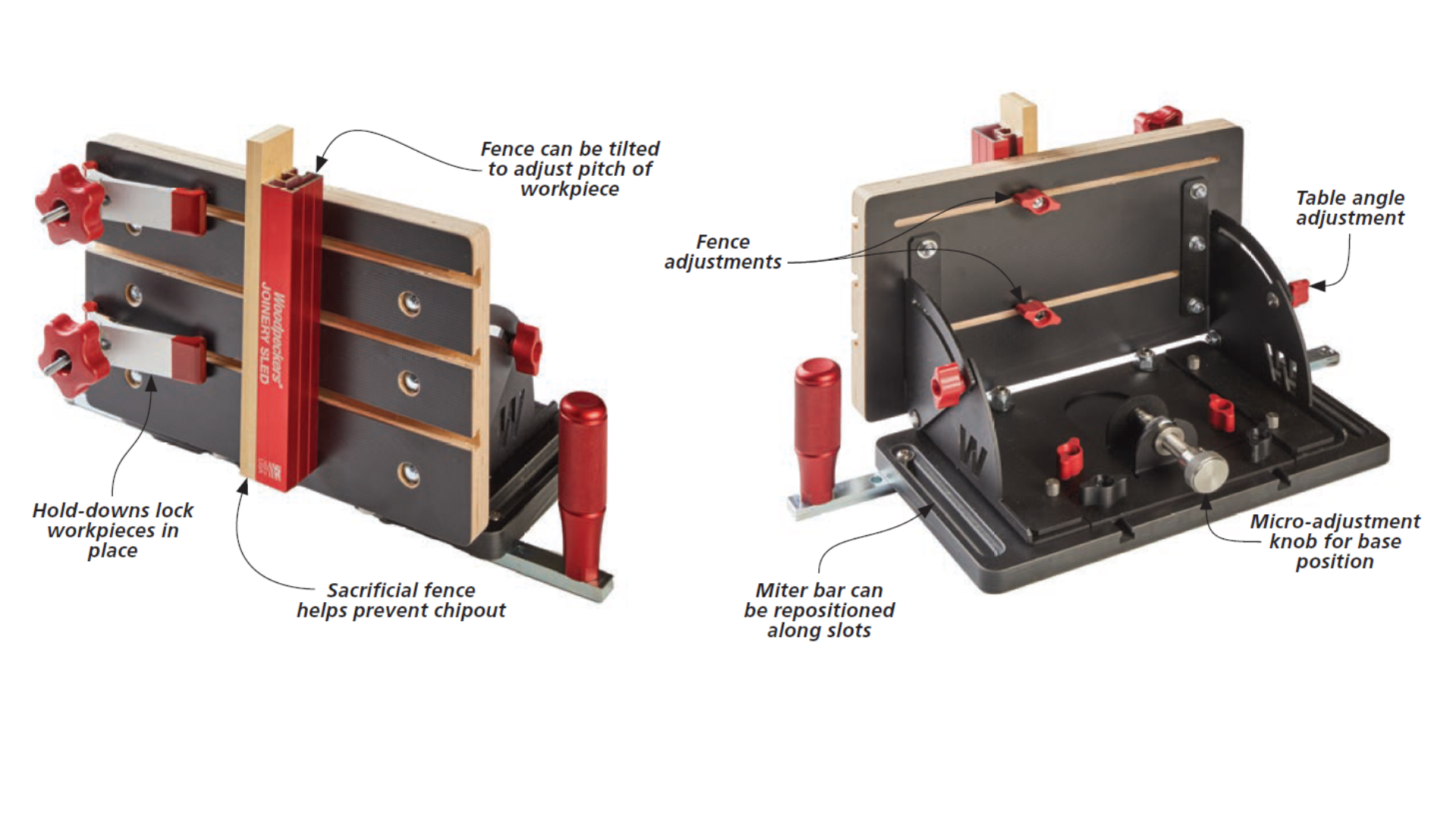

The sled features an adjustable miter bar, a tilting base, an adjustable fence, hold-downs, and a micro-adjustment mechanism for fine-tuning cuts.
The base can be tilted between approximately 44° and 91°, while the workpiece fence can also be tilted independently.
That combination allows the sled to handle straight cuts, angled joinery, and compound-angle operations.
Adjustable Setup for Precise Joinery
One of the sled's most useful features is its range of adjustment.

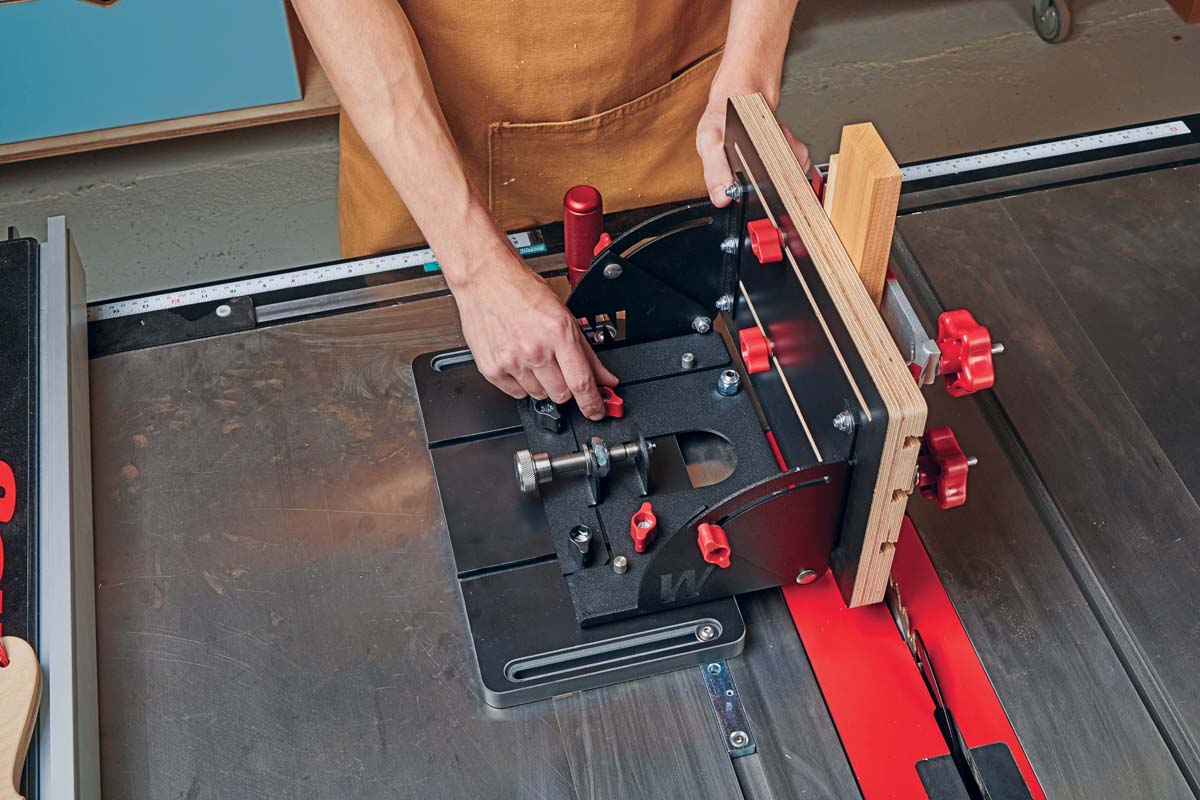

For larger changes, you can reposition the miter bar or loosen the bolts on the sliding base and move it by hand.
Once the sled is close to the desired position, the rear locking knobs secure the base so you can use the micro-adjustment knob for final positioning.
This is especially helpful when cutting tenons and other joinery where small changes can make the difference between a loose joint and a snug fit.
The sled's hold-downs are another welcome feature, keeping the workpiece securely positioned during the cut.
One Sled for Multiple Table Saw Jigs
In my shop, the Woodpeckers Joinery Sled can take the place of several accessories.
That includes my conventional tenoning jig and two separate jigs used for making 45° cuts in opposite directions.

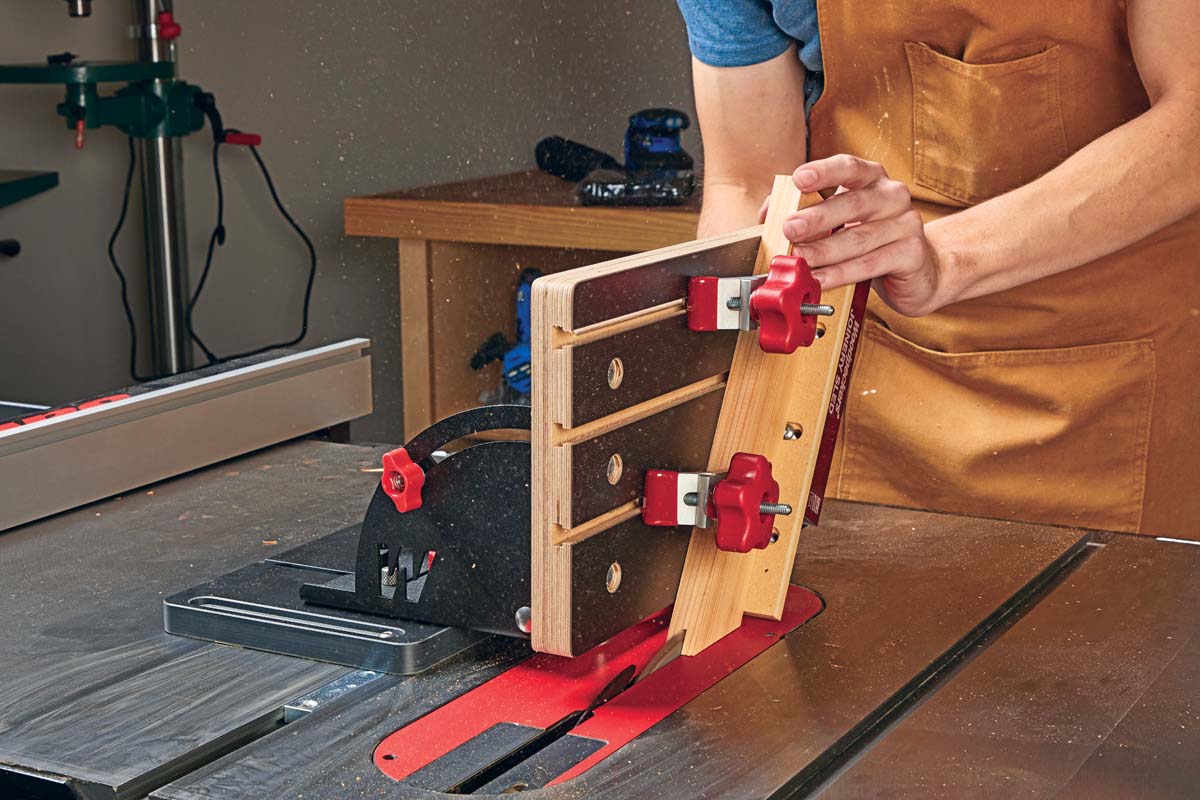

The tilting fence also allows the workpiece to be positioned for angled cuts, including grooves used in splined miter joints.
The ability to cut compound angles isn't something every woodworker needs regularly. But when a project calls for an unusual angle, it's convenient to adjust an existing jig rather than build another one.
That versatility is a big part of the sled's appeal.
Use the Joinery Sled at the Router Table

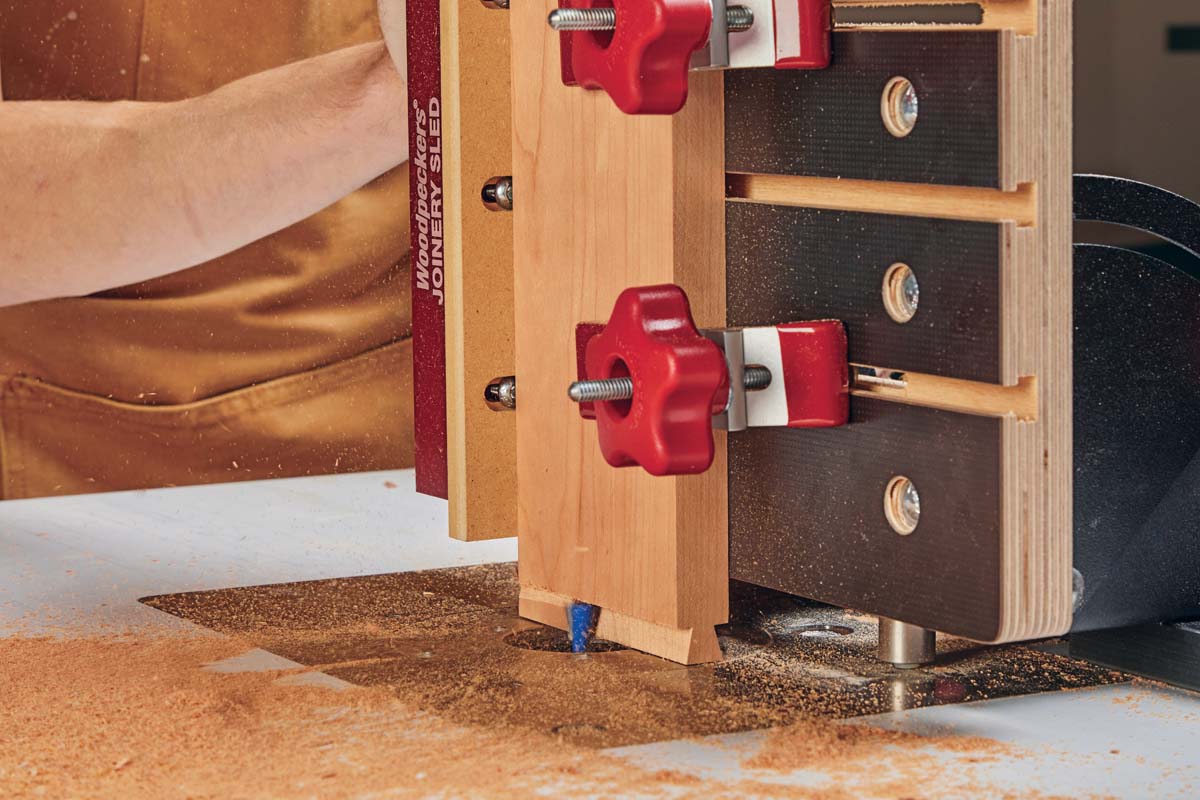

Another advantage is that the Woodpeckers Joinery Sled isn't limited to the table saw.
It can also be used with a compatible router table that has a miter gauge slot.
That expands the number of joinery operations you can perform with the same accessory.
Instead of maintaining separate sets of jigs for the table saw and router table, you may be able to use the sled for operations on both machines.
As with any jig, check the setup and clearances for each operation before making a cut.
Is the Woodpeckers Joinery Sled Worth It?
Whether a woodworking accessory is worth buying depends largely on how often you'll use it.
If you only cut tenons occasionally, a simple shop-built jig may be all you need.
But if you regularly make mortise and tenon joints, splined miters, or other specialized cuts, the Woodpeckers Joinery Sled offers some worthwhile advantages.
The micro-adjustment mechanism makes it easier to dial in accurate joinery. The adjustable fences accommodate a variety of cutting angles, and the hold-downs provide convenient workpiece support.
There's also the time and material cost of building multiple shop-made jigs to consider.
For my shop, the ability to replace several frequently used jigs with one adjustable accessory makes the Woodpeckers Joinery Sled a worthwhile investment.
It's a versatile solution for woodworkers who want to expand their joinery capabilities without continually adding more dedicated jigs to the shop.
Adjustable Table Saw Tenoning Jig
Prefer building your own woodworking jigs? This adjustable table saw tenoning jig holds workpieces vertically for smooth, accurate cheek cuts. Its adjustable back fence fits a variety of table saw rip fences and allows you to fine-tune the fit as shop conditions change.
Built from plywood or MDF and common hardware, it's a practical addition to any woodworking shop.
GET THE COMPLETE STEP-BY-STEP PLANS → Build Your Own Jig for Perfect-Fitting Tenons
