Mastering the Miter Gauge: Setup, Accuracy & DIY Upgrades
A good miter gauge is one of the most useful accessories you can have for your table saw. Whether you're cutting parts to length, making angled cuts, or working on joinery, it provides a reliable way to guide a workpiece past the blade.
But not all miter gauges are created equal.
Most table saws come with a basic miter gauge, and while these stock models can get the job done, they often leave room for improvement. The bar may fit loosely in the miter slot, or the angle settings may not be as accurate as you'd like.
Fortunately, you don't necessarily need to spend money on a premium replacement.
With a few simple adjustments and shop-made miter gauge accessories, you can turn an ordinary gauge into a much more useful and accurate tool.
Stock vs. Aftermarket Table Saw Miter Gauges
If you've been woodworking for a while, there's a good chance you've accumulated more than one miter gauge.
Your table saw probably came with one, and you may have upgraded to a commercial model along the way.
Aftermarket gauges often offer features that make setup and repeatability easier, including adjustable miter bars, longer fences, accurate angle stops, and flip-down stops.
We've gotten good results from the Woodpeckers miter gauge shown here. Its precise adjustments, adjustable fence, and built-in flip stop make it a versatile accessory for crosscutting.
But before you retire your original miter gauge, consider a few simple improvements.
Eliminate Play in the Miter Gauge Slot
One of the most common problems with an inexpensive miter gauge is a loose-fitting bar.
If you can wiggle the gauge from side to side while it's sitting in the table saw's miter slot, that movement can affect the accuracy of your cuts.
The goal is to eliminate the excess clearance while allowing the bar to slide smoothly.
Use Aluminum Foil Tape to Fine-Tune the Fit
There are several ways to improve the fit of a miter gauge bar, but one of my favorites is aluminum foil tape.
The tape is thin enough to make small adjustments without adding too much thickness.
Apply it to the appropriate contact surface of the bar, then test the fit in the miter slot.
Add or adjust the tape until the gauge slides freely with minimal side-to-side movement.
It's a quick, inexpensive improvement that can make an older miter gauge feel much more precise.
Make a Setup Board for Accurate 90° Crosscuts
Another frustration with basic miter gauges is returning the fence to exactly 90° after making an angled cut.
Even gauges with positive stops may need a little fine-tuning.
To simplify the process, I use a dedicated setup board that provides a reliable square reference.
Once you've made the board, resetting your miter gauge takes only a few seconds.
Step 1: Cut a Groove in the Setup Board
Start with a piece of ¾"-thick plywood.
Cut a groove down the center that's sized to fit the miter gauge bar.
Next, use an accurate square to scribe a line perpendicular to the groove.
This line establishes the reference for positioning the cleat.
Step 2: Attach a Square Cleat
Position a straight wooden cleat along the reference line.
Drill pilot holes and fasten the cleat to the plywood with screws.
Take your time with this step. The accuracy of the setup board depends on the cleat being square to the groove.
Once everything is aligned, tighten the screws to secure the cleat.
Step 3: Use the Board to Square the Gauge
To use the setup board, place the miter gauge bar into the groove.
Loosen the gauge's angle adjustment, then rotate the fence until it rests against the cleat.
Tighten the adjustment to lock the fence in position.
The setup board also makes a convenient reference when attaching an auxiliary fence to the miter gauge.
Add an Auxiliary Fence to Your Miter Gauge
One of the easiest and most useful upgrades you can make is adding an auxiliary fence.
This doesn't need to be anything complicated. In fact, I usually make mine from a straight, flat piece of plywood pulled from the scrap bin.
The auxiliary fence provides additional support for the workpiece during crosscuts.
It also backs up the wood fibers near the blade, helping reduce chipout as the cut is completed.
Improve Grip with Adhesive-Backed Sandpaper
One detail I like to add is a strip of adhesive-backed sandpaper to the front face of the auxiliary fence.
The abrasive surface provides extra friction, helping prevent the workpiece from slipping against the fence during a cut.
Because these fences are inexpensive to make, there's no reason to keep using one after it becomes badly worn.
Simply remove the old fence and screw on a replacement.
Build a Flip-Down Stop for Repeatable Crosscuts
When I'm cutting parts for a project, there's a good chance I'll need several pieces that are exactly the same length.
Measuring and marking every piece individually takes time and can introduce small differences.
A flip-down stop makes the job much easier.
The shop-made version shown here attaches to an auxiliary fence and provides a repeatable reference for positioning workpieces.
A Simple Plywood Stop
The stop is made from a few pieces of plywood and basic hardware.
Its mounting block fits over the auxiliary fence like a saddle.
A thumbscrew locks the assembly in position.
Once you've set the stop for the desired length, you can position each workpiece against it and make the cut.
When the stop isn't needed, simply flip it up and out of the way.
It's especially useful when cutting drawer parts, frame components, and other pieces that need to match.
Safety Tip: Keep the workpiece supported against the miter gauge fence throughout the cut, and make sure the cutoff cannot become trapped between the blade and a fixed stop.
Build an Adjustable Miter Gauge Fence
A simple auxiliary fence works well for most crosscuts, but an adjustable version offers even more flexibility.
This design uses a pair of rabbeted cleats that allow the fence to slide toward or away from the saw blade.
Once you've positioned the fence, tightening the machine screws locks it in place.
Adjust the Fence for Different Cutting Angles
Being able to reposition the fence is particularly useful when making angled cuts.
Instead of using a fixed fence that may no longer support the workpiece near the blade, you can slide the fence to provide better support.
You can also extend the auxiliary fence slightly past the blade path before making a cut, allowing the blade to create a fresh, close-fitting clearance opening.
This provides backing support for the wood fibers and helps reduce chipout.
When the fence becomes worn, you can remove it and install a new one.
Put an Extra Miter Gauge to Work at Other Machines
Even after upgrading your table saw miter gauge, there's no reason to throw away the old one.
A spare gauge can be useful at several other machines in the shop, provided its bar fits the machine's miter slot.
Use a Miter Gauge at the Disc Sander
Many belt and disc sanders include a miter slot in the table.
A miter gauge makes it easier to hold a workpiece at a consistent angle while sanding.
It's particularly useful for refining miters and sanding small parts accurately.
Make Accurate Cuts at the Band Saw
A miter gauge can also be useful at the band saw.
In addition to guiding ordinary crosscuts, it can help position a workpiece for certain stopped cuts and joinery operations.
For example, a miter gauge and fence can work together when cutting tenon shoulders.
Just make sure the workpiece is properly supported and guided throughout the operation.
Dedicate a Gauge to a Specialty Jig
Another option is to make an older miter gauge a permanent part of a shop-made jig.
A small-parts sled or box joint jig are good examples.
By leaving the gauge attached to the jig, you eliminate the need to remove, reinstall, and recalibrate it every time you want to use that accessory.
Get More Accuracy from Your Table Saw Miter Gauge
You don't necessarily need an expensive aftermarket miter gauge to make accurate crosscuts.
Start by eliminating any play in the miter slot and making sure the fence is square. Then add an auxiliary fence for better workpiece support.
From there, a flip-down stop or adjustable fence can make the gauge even more versatile.
And if you eventually decide to upgrade, your old miter gauge can still earn its keep at the band saw, disc sander, or as part of a dedicated woodworking jig.
With a little attention to setup and a few simple shop-made improvements, even a basic table saw miter gauge can become a dependable accessory for accurate woodworking.
Miter gauges are one of those accessories that are easy to accumulate. Your table saw likely came with one, and there’s plenty of woodworkers who choose to upgrade their gauges down the road — which means secondhand gauges aren’t too difficult to come by. Either way, a good miter gauge is an integral part of the table saw.
STOCK VS COMMERCIAL.
A miter gauge is a standard feature of most table saws, but those stock gauges leave a lot to be desired. Sometimes there’s play between the bar and the slot, sometimes the 90° and 45° aren’t quite perfect. When someone first purchases a table saw, it’s often a good idea to buy a new gauge.
|
| Miter gauges come in many forms, from humble stock models to kitted-out commercial upgrades. |

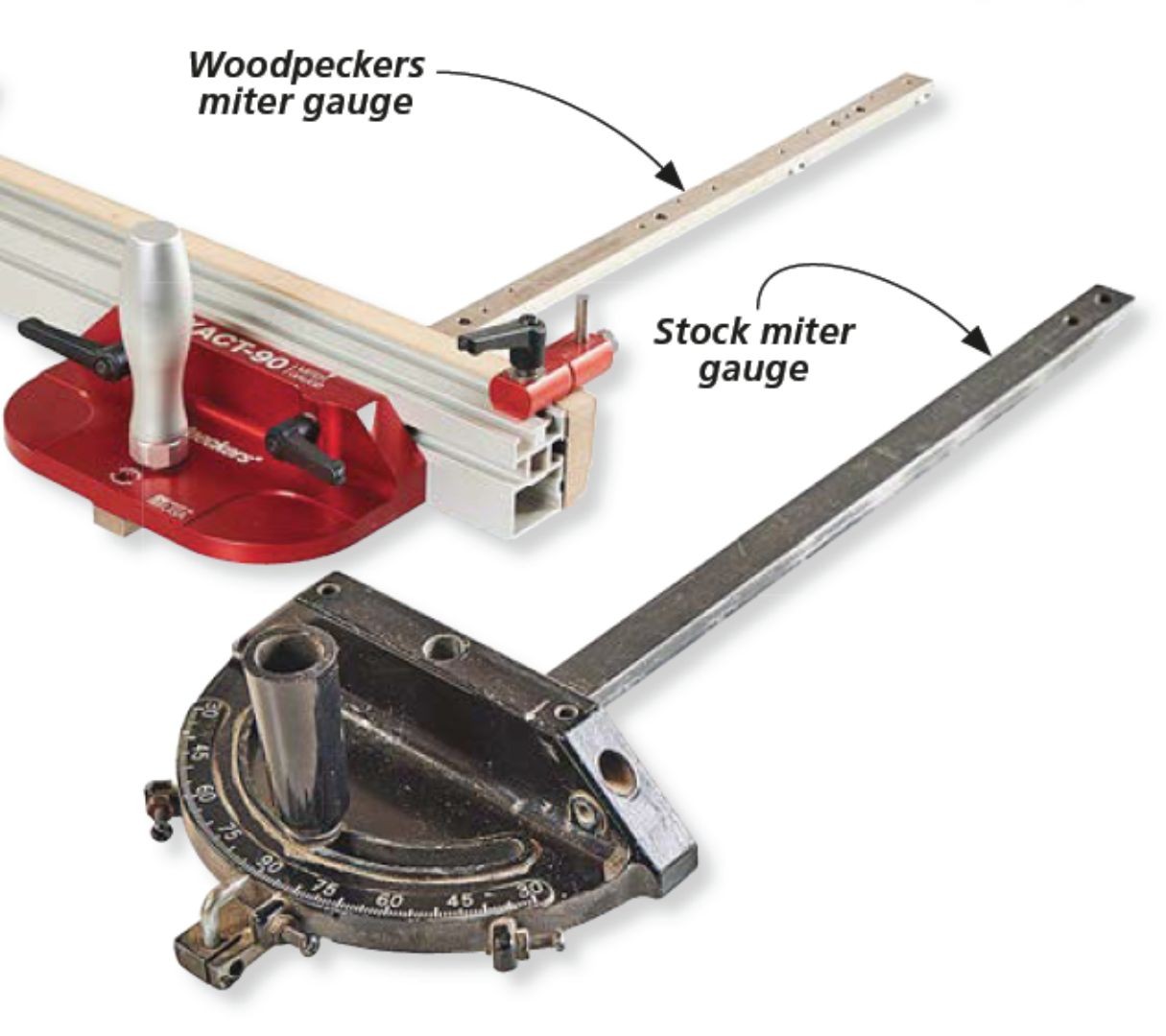

We’ve gotten good mileage from the miter gauge you see from Woodpeckers. It’s precise, plus it features an adjustable fence and flip-down stop. But, even if you pursue one of these options, don’t throw out that old miter gauge just yet.
MAXIMIZE YOUR MITER GAUGE
If you’re not quite sold on a commercial option, don’t fret—there are some steps you can take to make nearly any old miter gauge a precision tool.
ELIMINATE SLOP.
Have you ever set a miter gauge in a slot and felt the bar wiggle a bit? That’s called “slop” or “play,” and it’s the first thing that’ll need to be addressed if your gauge has it.
Luckily, it’s an easy task. Anything that will help the bar fill out the slot without interfering with its movement will work. A little reading will get you a lot of answers, but my personally preferred method is aluminum foil tape. The thin foil allows me to dial in the fit, and it slides as smooth as ever through the slot.
SETUP BOARD.
|

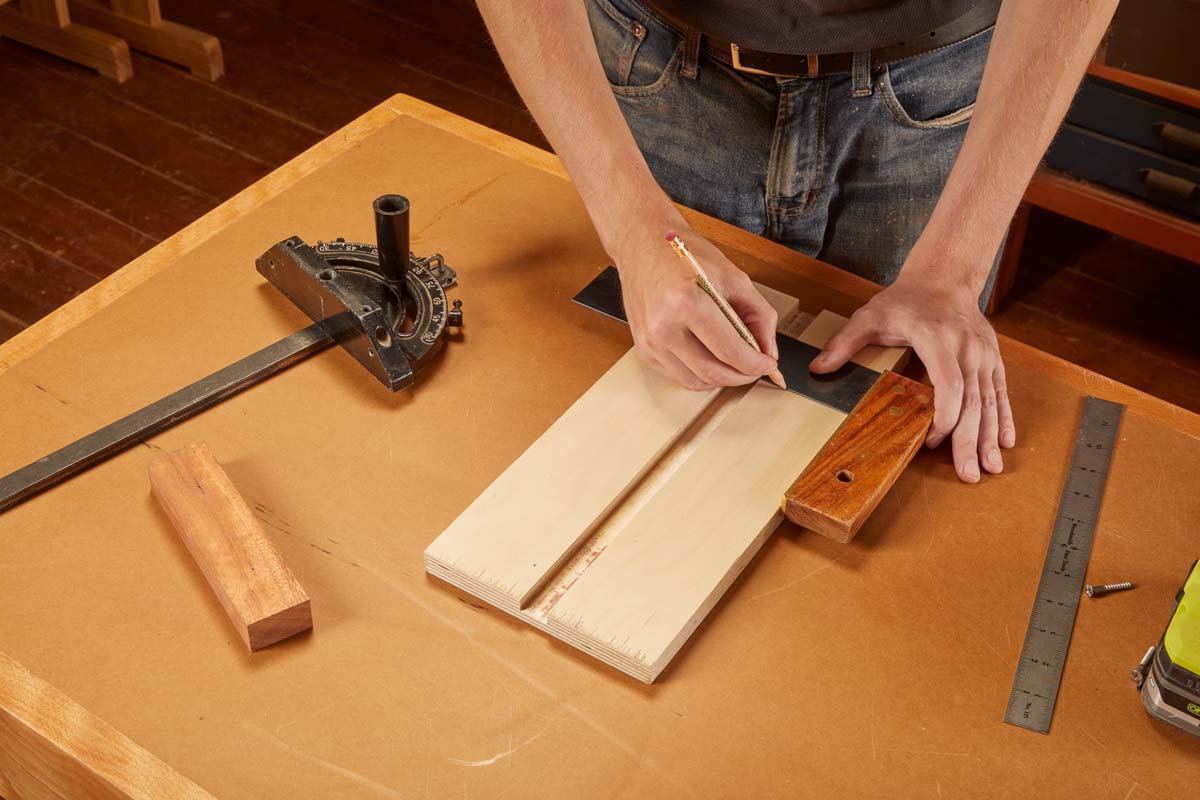

Square to the Groove. My setup board begins as a 3⁄4" piece of plywood. After cutting a groove down the center that matches my miter gauge bar, I scribe a square line to the groove. |
|

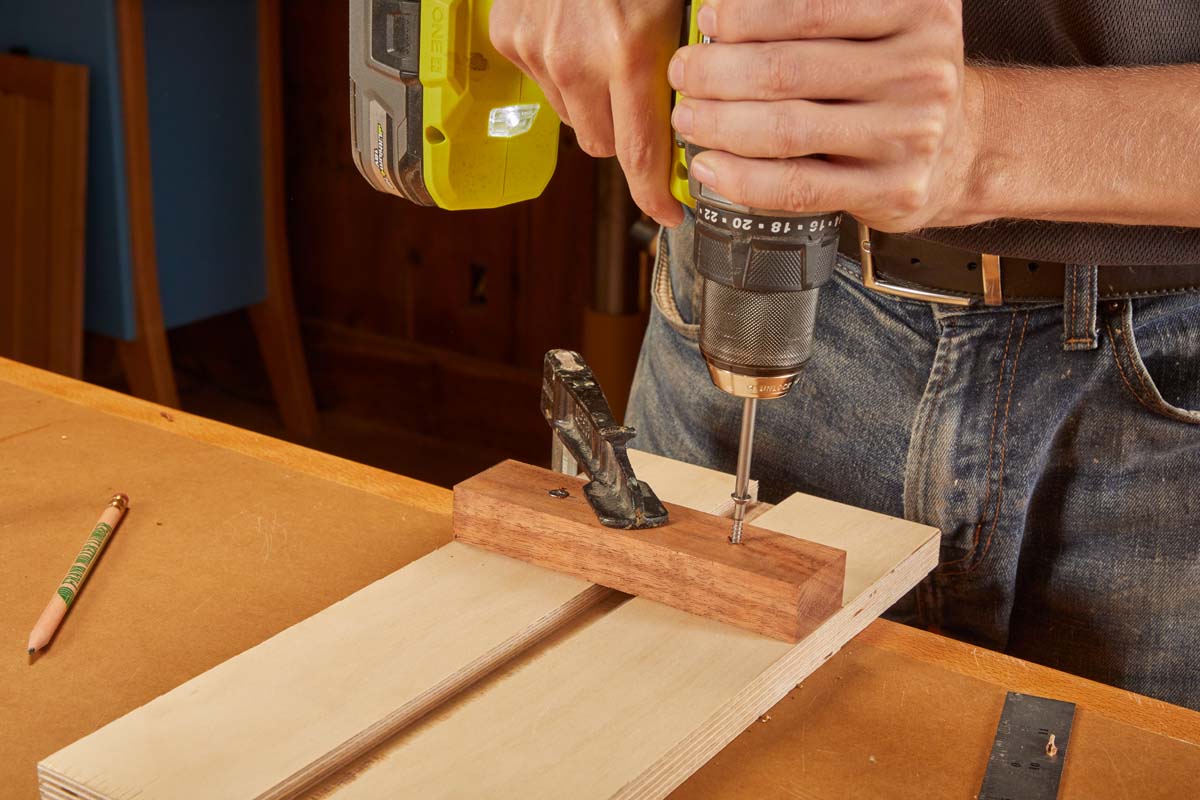

Cleat. With the square line as a reference, drill pilot holes and screw on a cleat. Take your time setting this up and double check that the cleat is square — a perfect 90° here means a perfect 90° on your gauges every time. |
|

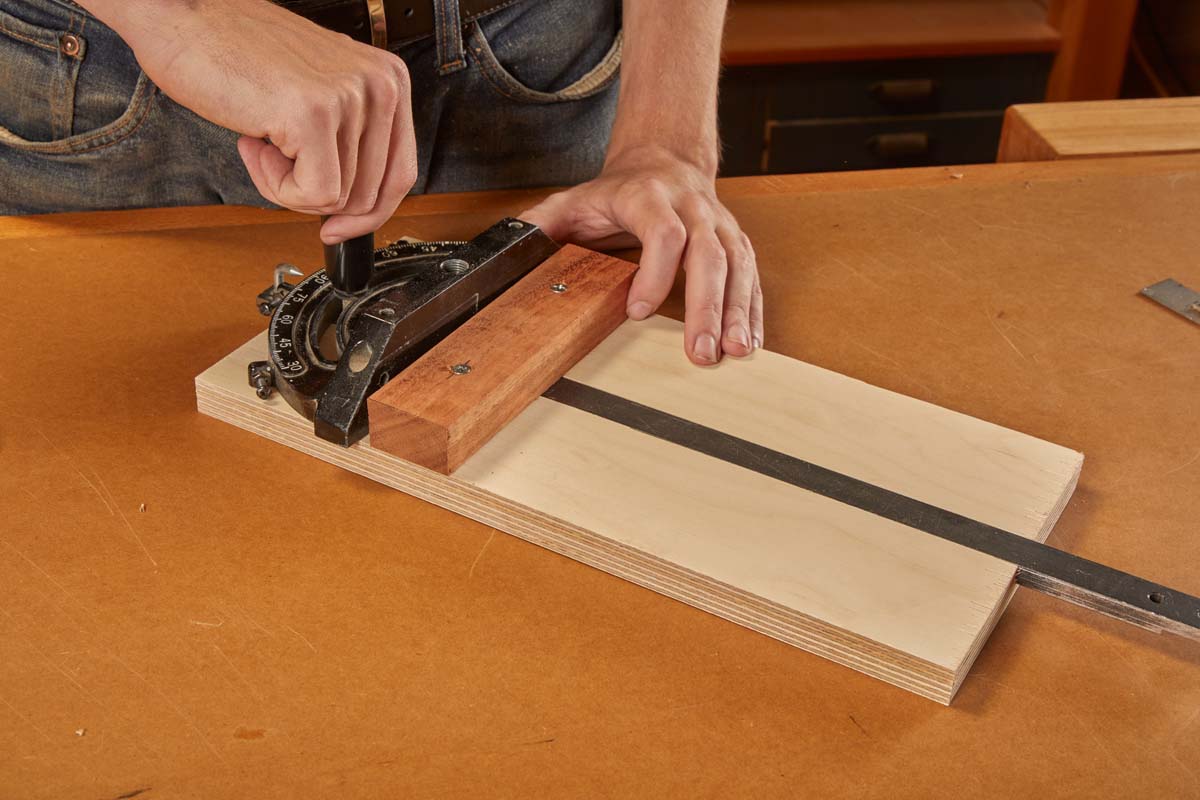

Using the Board. To use the setup board, slot the bar into the groove and align the fence to the cleat. This board also works well to hold an auxiliary fence as you screw it in place. |
On a cheaper miter gauge, one of the most finicky tasks can be setting it back to 90° after making an angled cut. To make sure my gauge returns back to a perfect square position, I use the simple setup board you see. It’s easy to put together, and it only takes me seconds to reset my miter gauge back to 90°.
AUXILIARY FENCE.
Once your old miter gauge is fixed up, there’s one more thing it’ll need: an auxiliary fence. All this needs to be is a simple piece of wood (usually plywood in my case) to support whatever workpiece is being cut. Not only does an auxiliary fence provide more support to a workpiece for a safer cut, but it also backs up the fibers to prevent chipout as you crosscut.
The stock for auxiliary fences almost always comes from my pile of cutoff scraps. As long as the piece is straight and flat, it’ll work just fine. Plus, this means I don’t need to be stingy with them — as soon as a fence is too chewed up, I toss it out and screw on a new one.
One personal preference I have when making an auxiliary fence is to cover the front side with some adhesive-backed sandpaper. This provides enough friction to ensure the workpiece won’t slip when making the cut. But, that’s just the beginning of shopmade fences. As easy as this option is, there are more ways to get mileage out of your stock miter gauge.
SHOPMADE UPGRADES
Now that we’ve covered the basics of miter gauges, you may be interested in something a bit more advanced. If the advantages of a commercial miter gauge appeal to you but you’re unsure if you want to invest the money in them, there are a number of shopmade options for achieving similar results.
If you thumb through older issues of Woodsmith, you’ll eventually happen upon one of the many designs for shopmade miter gauge accessories. Some of these are pretty involved, but I often prefer something simple when it can get the job done. The two shopmade upgrades you see on this page fit the bill.

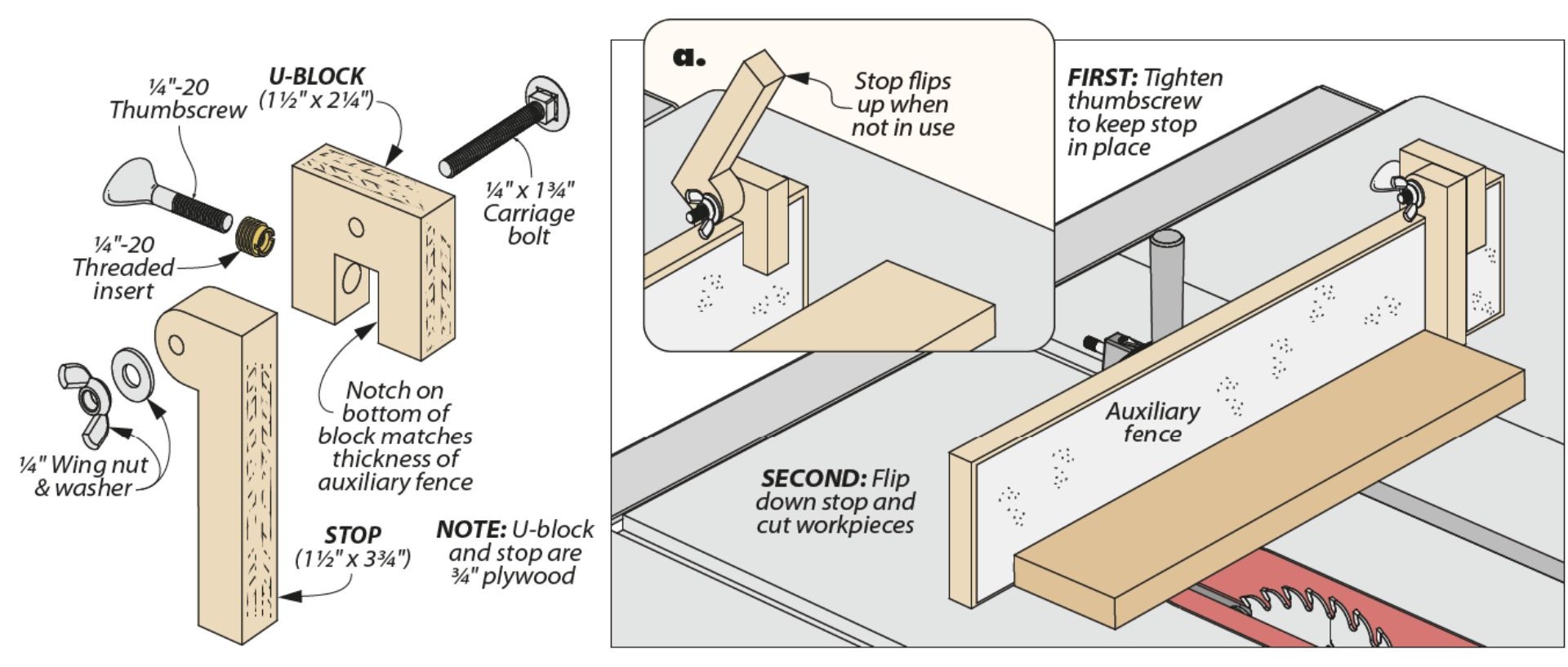

FLIP-DOWN STOP.
When I’m cross-cutting workpieces, there’s a good chance that at least two are going to need to be the same length. And there’s no better way to make sure that’s the case than using a stop. The flip-down stop you see above can be attached to nearly any fence you size it for, and it only consists of a few pieces of plywood and a handful of hardware.
Using the stop is easy. When you need to cut multiple pieces to the same length (when sizing drawer parts for instance), attach the stop by saddling it over the fence and tightening the thumbscrew. After cutting, the stop flips up to get out of your way. This is an easy addition to the simple fences I mentioned before, but it also works with the more advanced option.

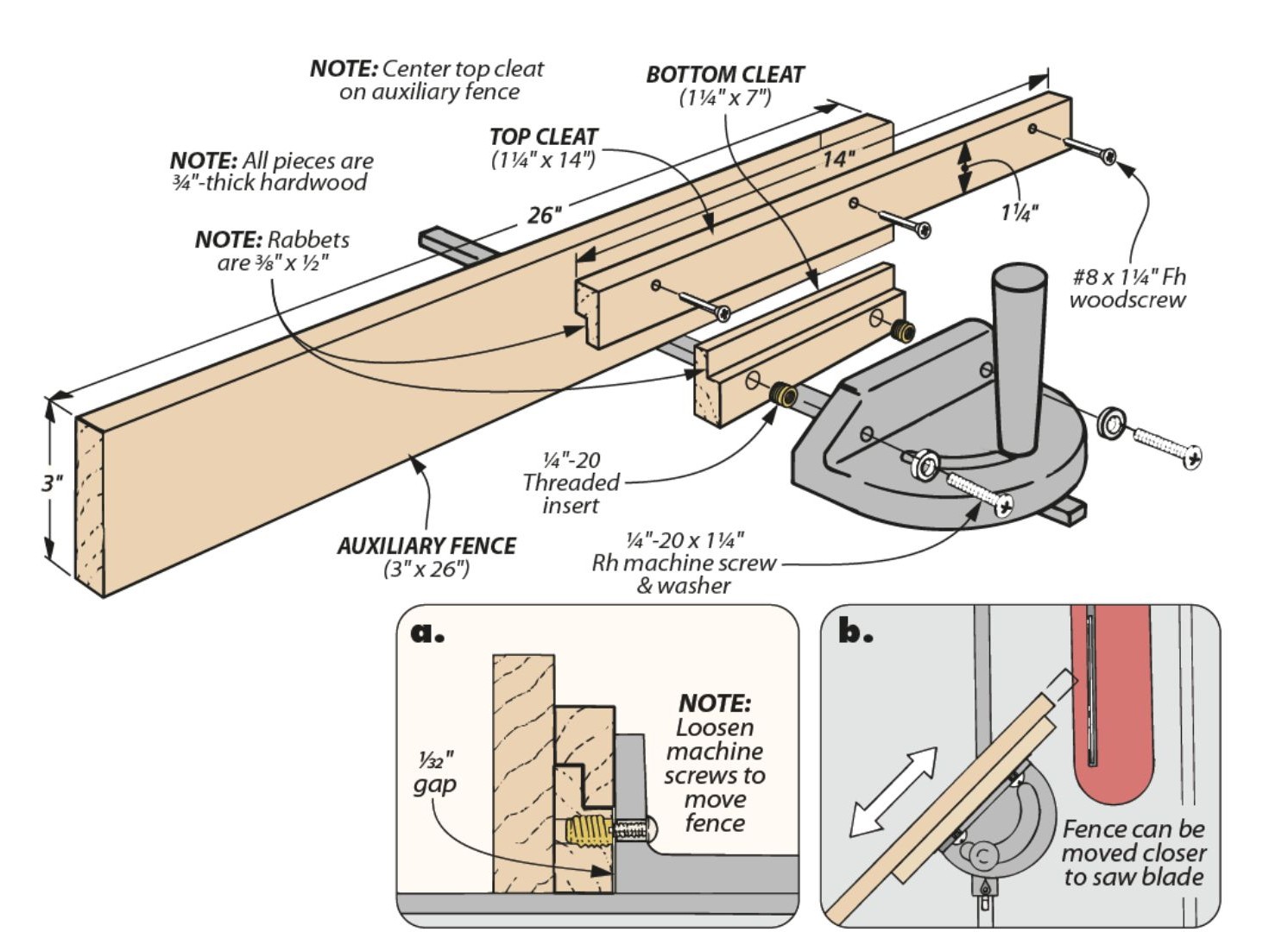

ADJUSTABLE AUXILIARY FENCE.
This adjustable miter gauge fence works great to improve your gauge without going for a commercial option. It uses a pair of rabbeted cleats which allow the fence to slide towards or away from the blade depending on the angle of the cut (as shown in detail ‘b’). Once in place, tightening the machine screws locks the fence in position.
Additionally, I can slide the fence beyond the blade so that it follows the workpiece through and backs up the cut. When the fence gets chewed up, all I need to do is cut a new piece and screw it on.
OUTSIDE THE TABLE SAW
As I mentioned before, spare miter gauges can be easy to accumulate. Luckily, there are reasons to keep these tools nearby a number of machines in the shop.
|
|
| A spare miter gauge comes in handy at the belt and disc sander, giving you a guide to achieve an exact angle. | A miter gauge along with your fence at the band saw works great for precise stop cuts, like the tenon shoulders you see above. |
SANDING.

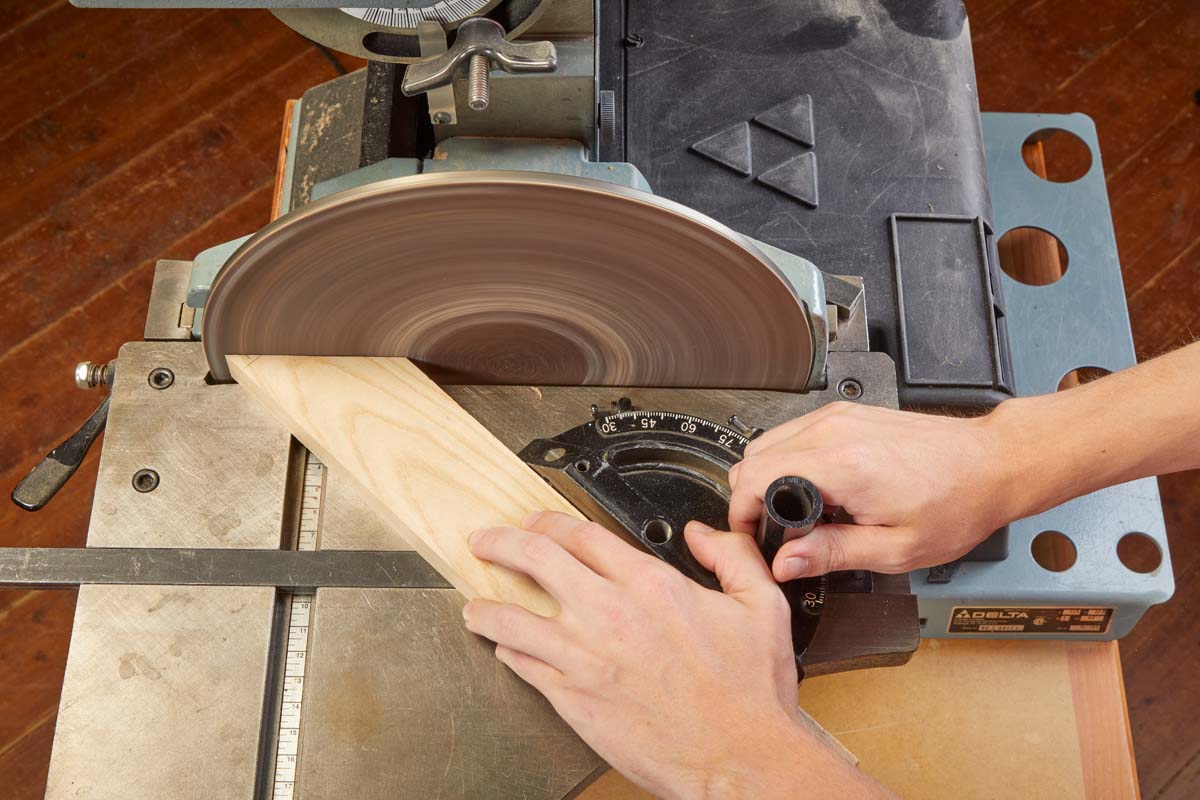

Many belt and disc sanders (like the one you see above) feature miter slots. As long as the miter gauge is in shape, this is an excellent way to dial in exact angles.
BAND SAW.
Most band saw tables feature miter gauge slots for crosscuts that need to be made at the band saw. However, they also work well to make stopped cuts for certain joints, such as with band-sawn dovetails, or the tenon shoulders shown above.
DEDICATED GAUGE.
A miter gauge can also be devoted to a specific task. A small parts sled or box joint jig are good examples — it saves the time and headache of attaching and calibrating a jig by making it a permanent fixture instead. Regardless of what use you find, don’t underestimate your old miter gauge.
