How to Make a Toggle Clamp Vise

By: Woodsmith Readers
To get the best results when working by hand, it’s important to be comfortable. There are plenty of options, but the best one for me has been the shop-made vise you see at left.

Toggle Clamp Vise

Image of shop-made vise toggle clamp vise To get the best results when working by hand, it’s important to be comfortable. Having the piece at a good working height will make for better joints (and it’ll feel a lot better on your lower back). There are plenty of options, but the best one for me has been the shop-made vise you see at left.

You can see below how I put this vise together. Plywood is the material of choice here for its stability, save for the clamping face where I chose to use hardboard for a nice, smooth surface. Screws and butt joints do the heavy lifting. Four toggle clamps attach to the front, allowing me to quickly swap between workpieces. -Mike Pekovich Middlebury, Connecticut

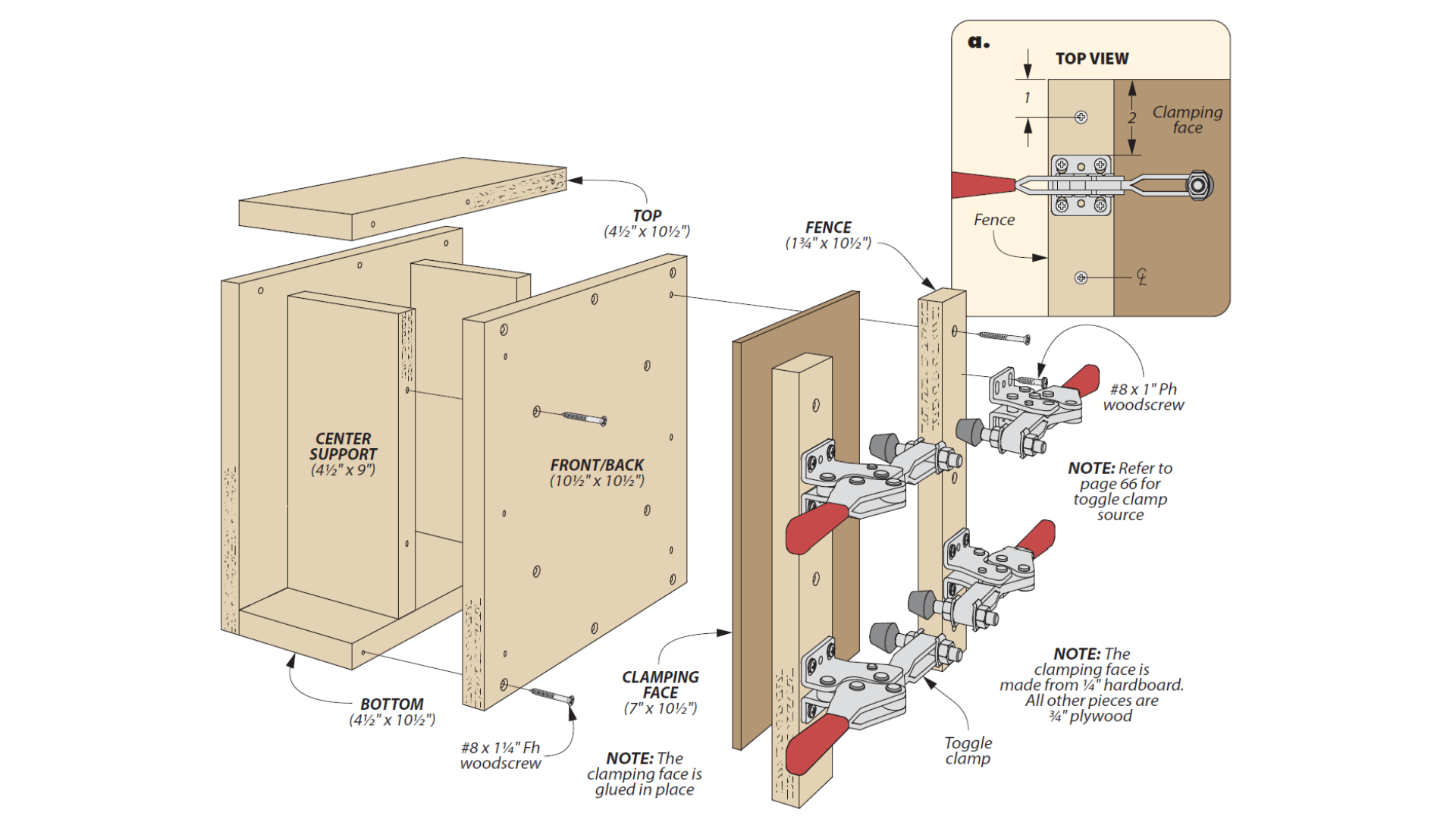

Exploded view diagram of shop-made vise toggle clamp vise

Published: Sept. 17, 2025
