Making accurate cuts on small workpieces can be one of the biggest challenges in woodworking. Whether you’re trimming parts to length or cutting precise miters, using a table saw or power miter saw often feels like overkill—and can even be unsafe. That’s where a simple, shop-made solution like this adjustable pull saw miter box really shines.
A Safer Way to Cut Small Parts
Small pieces are notoriously difficult to manage on larger power tools. Tearout, uneven cuts, and even the risk of the workpiece breaking apart are all common issues. By switching to a pull saw and guided miter box, you gain a level of control that’s hard to match with machines.

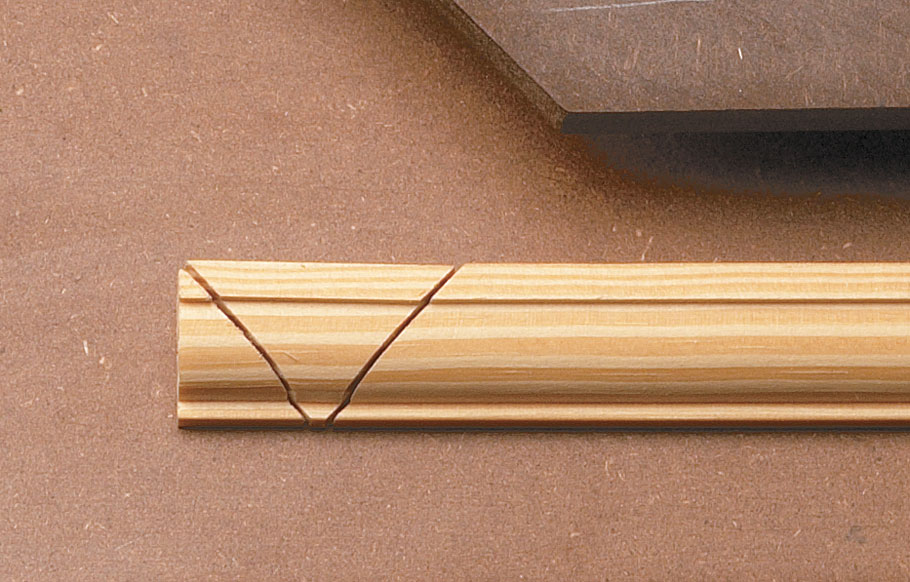

The thin kerf of a pull saw produces smooth, precise cuts with minimal tearout. Paired with the miter box, it becomes a reliable system for repeatable, accurate results—especially on delicate or narrow stock.
Adjustable for Accuracy
One of the standout features of this design is the adjustable guide system. Instead of being fixed in place, the guides can be fine-tuned to match the thickness of your saw blade. This creates a snug fit that keeps the saw tracking true throughout the cut.
The guides are positioned to support the most common angles used in woodworking: 90°, 45° left, and 45° right. Once set, they provide consistent, repeatable accuracy without the need for constant realignment.
Built-In Visibility and Control

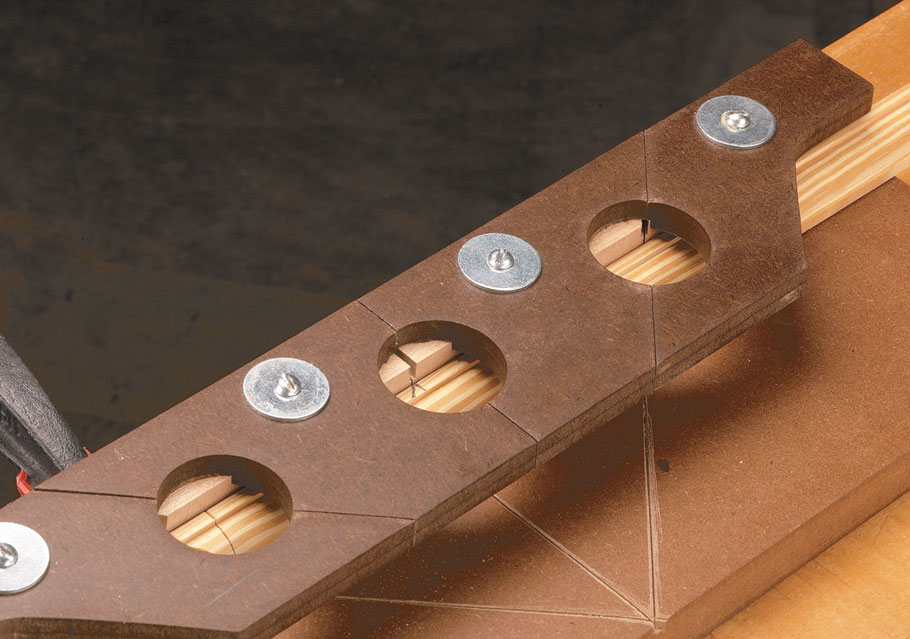

To make accurate cuts, you need to see exactly where your blade meets the workpiece. That’s why this miter box includes built-in viewing portholes along the top. These openings allow you to align your layout lines with confidence before and during the cut.

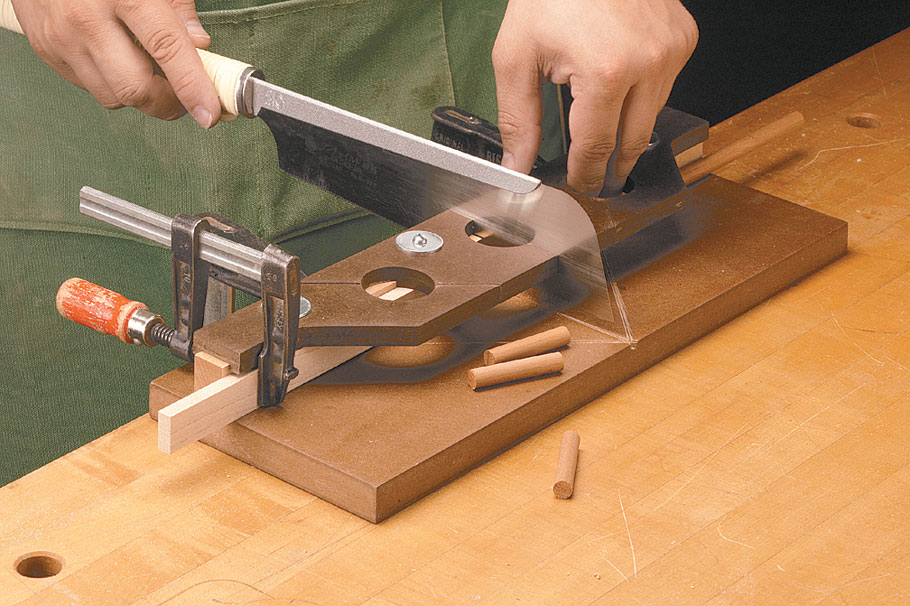

You’ll also find cutaways at the ends of the box that make it easier to hold small parts securely or clamp a stop block in place. This is especially useful when you need to cut multiple pieces to the same length.
Simple Materials, Quick Build

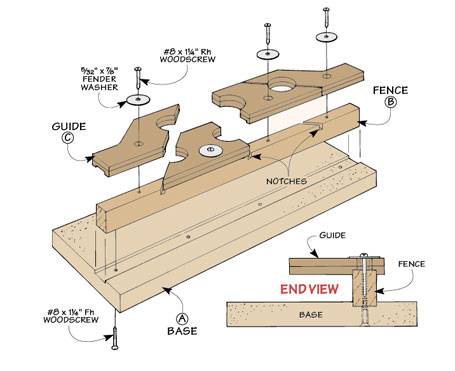

Another advantage of this project is how quickly it comes together. The miter box is made from just a few materials, including MDF for the base, hardwood for the fence, and hardboard for the guides.
The construction is straightforward, making it an approachable project for most woodworkers. At the same time, the finished jig is precise enough to become a go-to tool for detailed work.
A Must-Have Jig for Fine Work
Whether you’re building small furniture components, cutting trim, or working on detailed joinery, this pull saw miter box offers a simple way to improve both accuracy and safety. It’s compact, reliable, and easy to adapt to your workflow.
If you regularly work with small parts, this is one jig you’ll reach for again and again. Download the free plans and follow along with the video to create a precision miter box that will upgrade your hand tool workflow.
