Stacked Dado vs. Wobble Dado Blades: What's the Difference?
Reader Question: Can you tell me the difference between a stack and a “wobble” dado blade?
— Gabe Alexander, Council Bluffs, Iowa
Woodsmith Answer:
A dado blade is one of the most useful accessories for cutting joinery on a table saw. Unlike a standard saw blade, which produces a relatively narrow kerf, a dado blade cuts a wider groove in a single pass.
Dadoes, grooves, and rabbets are common in cabinetmaking and furniture construction, so having a reliable way to cut them can save considerable time.
There are two basic types of adjustable-width dado blades: wobble dado blades and stacked dado blade sets.
Both accomplish the same general task, but they operate differently. And those differences affect setup, vibration, and the quality of the finished cut.
How Does a Wobble Dado Blade Work?

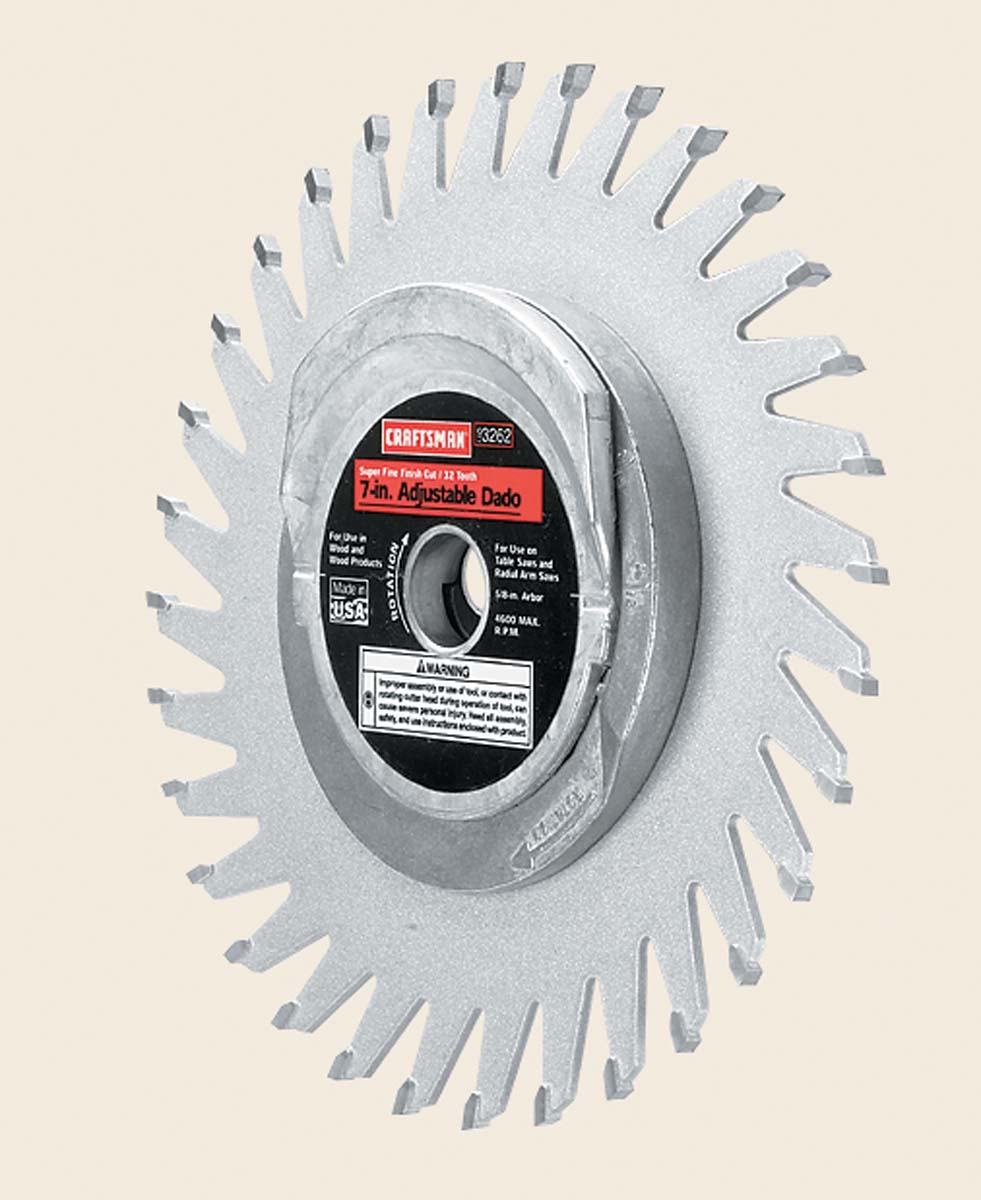

A wobble dado uses a single circular saw blade mounted at an adjustable angle on the arbor.
Unlike a standard blade that spins perpendicular to the arbor, the wobble blade is tilted slightly.
As it rotates, the angled blade sweeps across a wider area, creating a dado or groove.
Depending on the blade design, the width can typically be adjusted from approximately 1/4" to 13/16".
Adjusting the Width of a Wobble Dado
A traditional wobble dado has a beveled adjustment disk on each side of the blade.
Rotating these disks changes the angle of the blade.
The greater the tilt, the wider the groove.
In theory, this makes adjusting the width fairly simple.
However, fine-tuning the cut can be frustrating. It's easy to lose track of how much the disks have been adjusted when trying to achieve a precise fit.

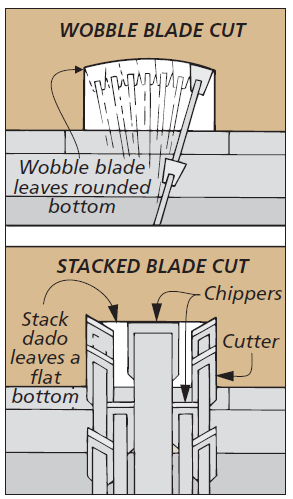

Why Wobble Dado Blades Leave Rounded Bottoms
The biggest drawback of a wobble dado is the shape of the cut.
Because the blade is tilted, the bottom of the groove isn't perfectly flat.
Instead, the blade produces a slightly curved bottom.
The wider the dado, the more noticeable the curve becomes.
For some woodworking joints, this may not be a major concern.
But if you're cutting exposed joinery or fitting a shelf tightly into a dado, the curved bottom can leave a visible gap.
Wobble dado blades can also produce more vibration and tearout than a quality stacked set, particularly when cutting plywood.
These limitations are why wobble dado blades are less popular for precision furniture and cabinetmaking.
How Does a Stacked Dado Blade Set Work?

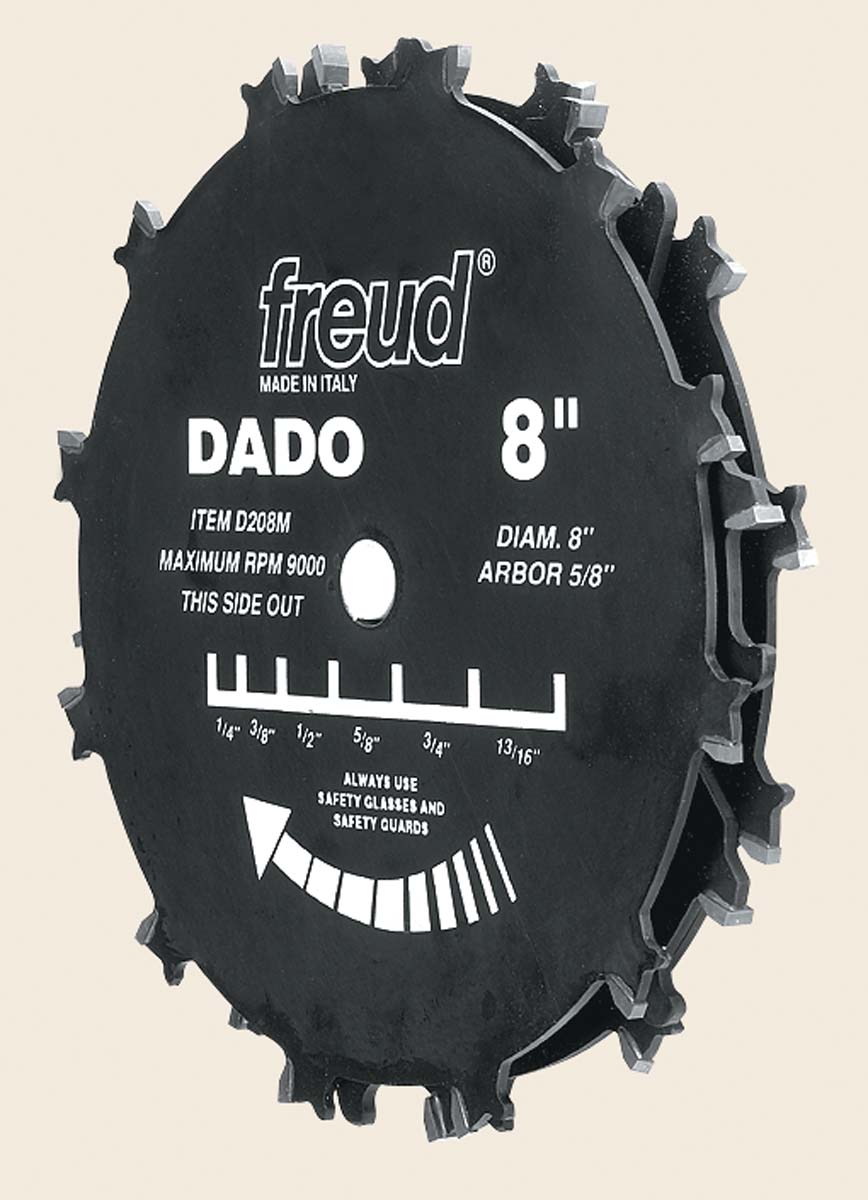

A stacked dado set uses several blades mounted together on the table saw arbor.
Instead of tilting a single blade, the set combines outside cutters with smaller internal chippers.
The components work together to remove material across the full width of the dado.
Outside Cutters and Chippers
A typical stacked dado set includes two outside blades, commonly called cutters.
These blades establish the sides of the groove.
Between them are smaller blades called chippers.
The chippers remove the waste between the outside cutters, creating a wide groove with a relatively flat bottom.
Most stacked dado sets include several chippers of different thicknesses, along with thin shims for making fine adjustments.
By combining the cutters, chippers, and shims, you can set the dado width to match the material you're using.
Many common stacked dado sets can cut grooves up to approximately 13/16" wide, depending on the set and saw.
Why Stacked Dado Sets Produce Cleaner Cuts
The biggest advantage of a stacked dado set is the quality of the cut.
Because the cutters and chippers are arranged parallel to one another, the set produces a much flatter-bottomed groove than a wobble dado.
This is especially helpful when making cabinet dadoes, grooves for shelves, and other joinery where the mating parts need to fit closely.
A good stacked dado set also tends to produce cleaner edges with less tearout.
That makes it a better choice for furniture projects and cabinetmaking where accurate joinery is important.
One thing to keep in mind is that not every stacked set produces a mathematically perfect flat bottom. Tooth geometry can leave slight scoring or small variations, depending on the blade design.
Stacked Dado vs. Wobble Dado: Side-by-Side Comparison
Setting Up a Stacked Dado for Accurate Joinery
One disadvantage of a stacked dado set is the time required to select the right combination of cutters, chippers, and shims.
If you're cutting dadoes for plywood, this can be particularly important.
For example, a sheet of plywood sold as 3/4" thick may measure slightly less than that.
A dado cut to a full 3/4" could leave the plywood fitting too loosely.
That's why it's important to match the dado width to the actual thickness of the material.

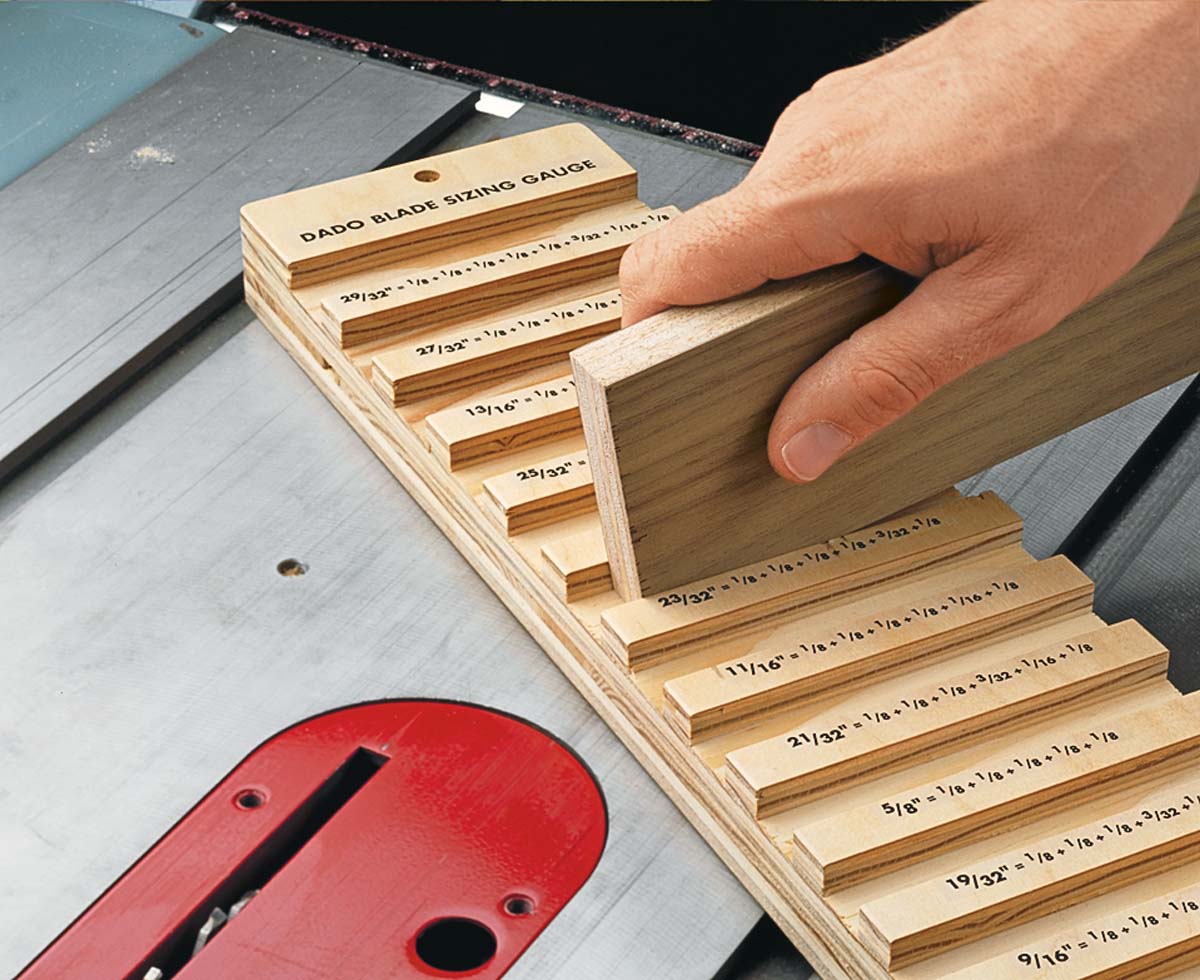

Make a Shop-Built Dado Width Gauge
One solution I use is a simple shop-made dado width gauge.
The gauge has a series of grooves cut with different combinations of chippers and shims.
Each groove is labeled with the setup used to make it.
When I need to cut a dado, I can test the material in the grooves to find the best fit.
Then I know which combination of blades and shims to install.
This eliminates much of the trial and error involved in setting up a stacked dado set.
Can You Use Either Dado Blade on Any Table Saw?
Before installing either type of dado blade, check your table saw manufacturer's recommendations.
Not every table saw is designed to accept a dado blade.
The saw must have a suitable arbor, enough available arbor length, and sufficient capacity for the diameter and width of the dado set.
You'll also need the appropriate dado throat plate.
Never install a dado set wider than the saw or blade manufacturer's approved capacity, and make sure the arbor nut is fully engaged as specified in the saw's instructions.
Because dado cuts are usually non-through cuts, use the appropriate guarding and workpiece-control setup for the operation. Follow the saw manufacturer's instructions for any required changes to the blade guard or riving knife.
Which Dado Blade Is Better for Woodworking?
So which type of dado blade should you choose?
If you only cut an occasional dado or groove, a wobble dado can be an inexpensive way to get the job done.
However, its tendency to leave a rounded bottom and produce more vibration makes it less desirable for precise furniture joinery.
For most cabinetmaking and furniture projects, I'd choose a quality stacked dado set.
The ability to adjust the width accurately and produce clean, flat-bottomed grooves makes it more versatile.
Although it takes a little more time to set up, a shop-made width gauge can simplify the process considerably.
When the fit and appearance of the joint matter, a stacked dado blade is generally worth the extra investment.
