Accurate woodworking often comes down to finding a simple, repeatable setup. Whether you're sharpening a chisel, driving a pin, or laying out dovetails, a small improvement can make it easier to get consistent results.
These four Woodsmith reader-submitted tips use common tools and repurposed items to simplify sharpening, assembly, joinery layout, and painting.
1. Set Honing Angles with a Digital Angle Gauge
A honing guide makes it easier to maintain a consistent bevel while sharpening a plane iron or bench chisel. The trick is setting the blade in the guide to produce the angle you want.
Jim Berry of Royal Oak, Michigan, uses a digital angle gauge to simplify the setup.
Jim first zeroes the digital gauge on his workbench. Then he places it on the plane iron or chisel and slides the blade in or out of the honing guide until the display shows the desired honing angle.
Once the blade is locked in place, the guide maintains that setup as he sharpens.
Woodsmith Tip: A repeatable honing angle is often more important than chasing tiny differences in the displayed number. Once you find a setup that produces the bevel you want, make a note of it so it's easy to duplicate the next time you sharpen.
Shop tip submitted by Jim Berry, Royal Oak, Michigan.

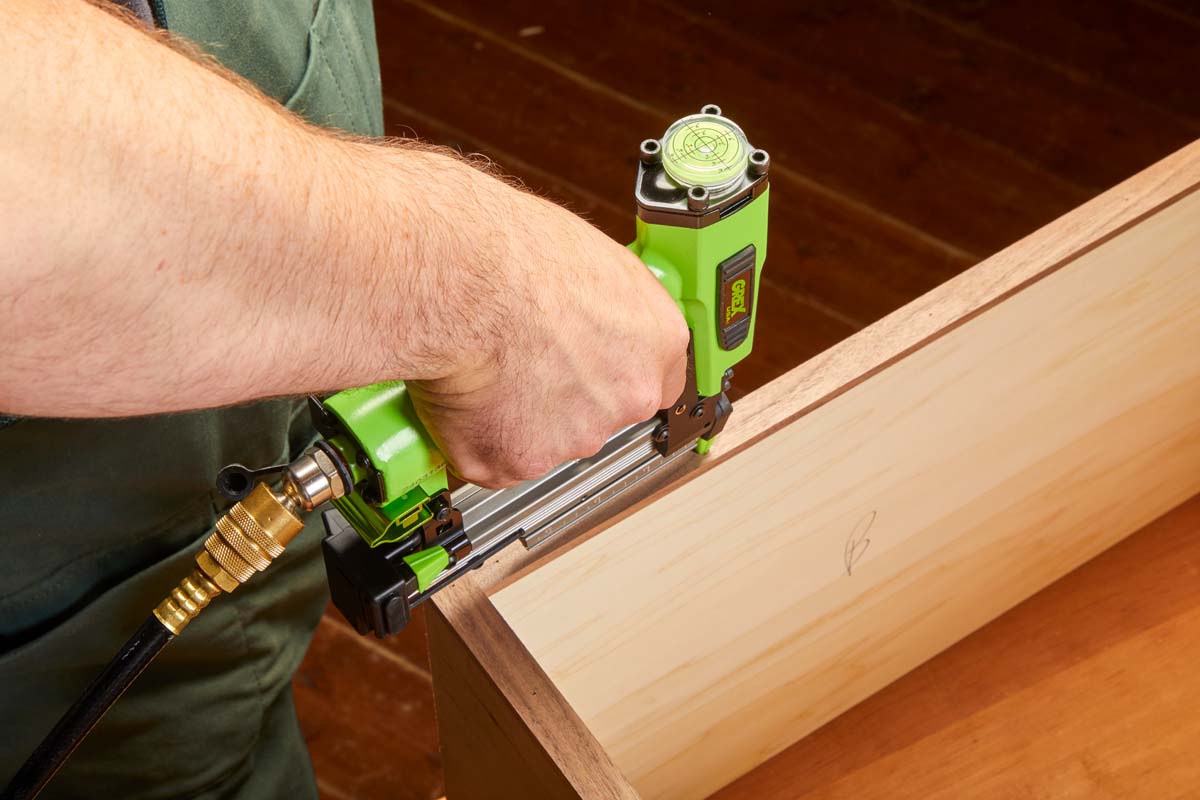

2. Keep a Pin Nailer Perpendicular to the Workpiece
Joining narrow workpieces with a pin nailer can be tricky. If the nailer tilts as the pin is driven, the fastener may angle through the workpiece and poke out the other side.
Richard Alvidrez of Los Angeles, California, added a simple visual reference to his nailer: a small bubble level.
By gluing the level to the tool, Richard has a quick way to check that he's holding the pin nailer perpendicular before driving the fastener.
Woodsmith Tip: The level only provides a useful reference if the workpiece itself is positioned appropriately. Test the setup on scrap first, and always keep your hands clear of the possible path of the pin. Small-gauge fasteners can deflect unexpectedly as they travel through the wood.
Shop tip submitted by Richard Alvidrez, Los Angeles, California.

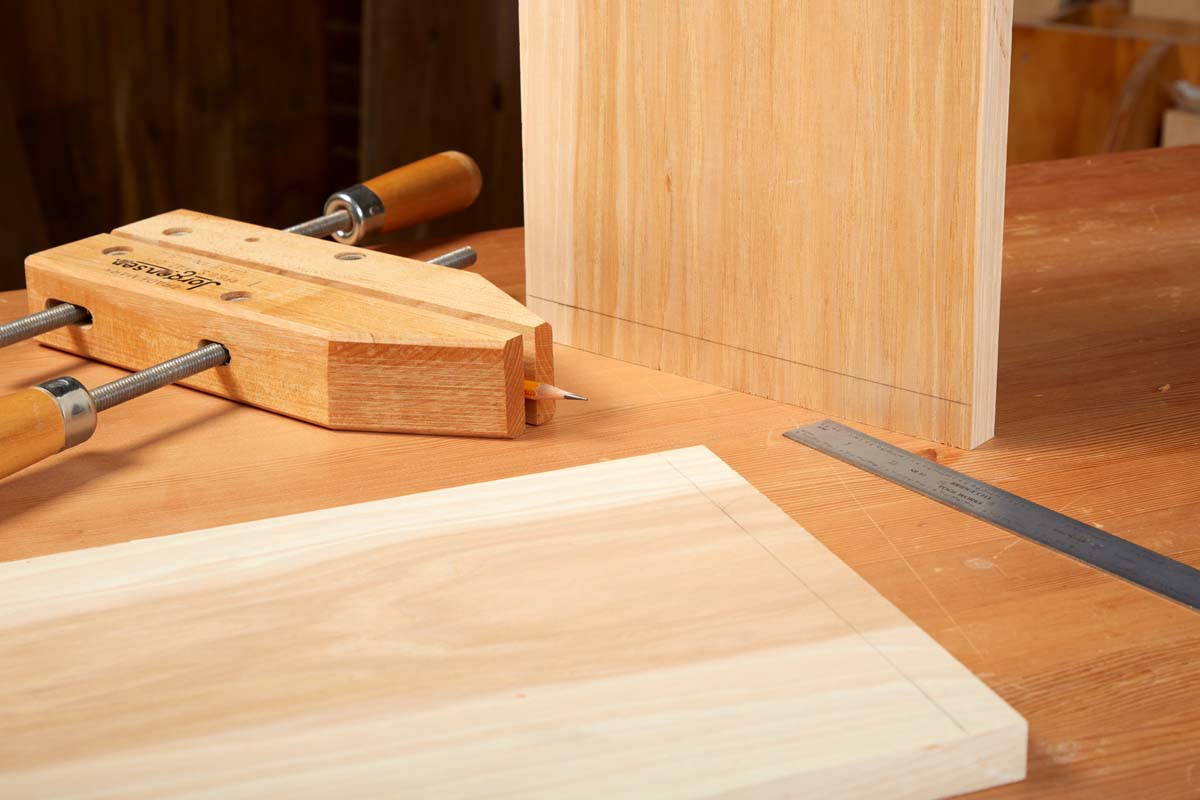

3. Use a Handscrew Clamp to Mark Dovetail Baselines
A consistent baseline is an important part of laying out hand-cut dovetails. Instead of measuring and marking the baseline separately on every workpiece, Logan Wittmer of Runnells, Iowa, turns a wooden handscrew clamp into a simple marking gauge.
Logan positions a pencil in the handscrew clamp and uses the mating board to establish its height. Once the pencil is set, he drags the handscrew and pencil along the workpiece to draw the baseline.
Because the pencil remains fixed in the clamp, the same setting can be transferred to the remaining workpieces without measuring each one individually.
Woodsmith Tip: Using the actual mating board to establish the baseline automatically relates the layout to the thickness of the material you're joining. Make a test mark before laying out all the parts to verify the setting.
Shop tip submitted by Logan Wittmer, Runnells, Iowa.
4. Store a Wet Paint Roller in a Pringles Can
When he finishes painting, Alberto slides the roller into the can and closes the lid around the handle. The container catches wet paint and helps keep the roller enclosed until he's ready to continue painting.
Woodsmith Tip: Treat this as short-term, between-coats storage and follow the paint manufacturer's instructions for application, cleanup, and storage. Don't use this method with a coating if its manufacturer requires cleaning the applicator after use or warns against storage in a closed container.
Shop tip submitted by Alberto York, Malden, Massachusetts.
Simple Ways to Make Woodworking More Repeatable
Each of these tips makes a familiar task a little easier. A digital angle gauge helps establish a honing angle, a bubble level provides a visual reference when using a pin nailer, a handscrew clamp creates repeatable dovetail baselines, and a repurposed container keeps a paint roller contained between coats.
They're inexpensive solutions that make everyday shop tasks more convenient and consistent.
