A thickness planer has a simple job: Create smooth stock with two flat, parallel faces. But after hundreds of feet of lumber have passed through the machine, dust, chips, pitch, and normal wear can start affecting its performance.
Boards may become harder to feed. The height adjustment may feel stiff. The knives can accumulate pitch, and the bed may no longer feel as slick as it once did.
Fortunately, a basic thickness planer tune-up doesn't have to be complicated. A thorough cleaning followed by some routine maintenance can go a long way toward restoring smooth, reliable operation.
SAFETY NOTE: Disconnect the Power. Unplug the planer before removing covers, reaching inside the machine, cleaning the cutterhead, or performing any maintenance. Consult your owner's manual before disassembly, knife removal, lubrication, or adjustment. The exact procedures and recommended lubricants vary by machine.
1. Open Up the Planer and Remove Dust
Start by giving yourself access to the areas where chips and dust accumulate.
Depending on your planer, this may mean removing side panels, the dust chute or guard assembly, and possibly the upper cover. Follow the manufacturer's instructions for accessing the interior of the machine.
Once the covers are out of the way, vacuum out as much loose debris as possible. Pay particular attention to the areas around the cutterhead, feed mechanism, height-adjustment system, and drive components.
Compressed air can help reach areas a vacuum can't, but use it carefully. The goal is to remove debris rather than drive it farther into bearings, switches, motors, or other enclosed components.
WOODSMITH TIP: Vacuum First. Start with a shop vacuum and remove the bulk of the chips and dust before reaching for compressed air. You'll create less airborne dust and have less debris to chase around inside the machine.
2. Remove Pitch and Resin Buildup
Dust isn't the only thing that collects inside a planer. Pitch and resin from lumber can gradually coat metal surfaces, the cutterhead, knives, and other components.
That buildup can interfere with clean cutting and make future debris stick even more readily.
A blade-and-bit cleaner can make quick work of stubborn deposits. Apply the cleaner according to its directions, give it time to loosen the residue, and wipe the surface clean.
For heavy buildup on appropriate metal parts, a brass brush can help loosen stubborn deposits without being as aggressive as a steel brush.
Avoid spraying cleaners indiscriminately throughout the machine. Apply them only where appropriate and keep liquids away from electrical components and other areas identified by the manufacturer.
3. Clean and Lubricate the Height Adjustment
If raising or lowering the cutterhead has become more difficult, dust and resin may have accumulated on the threaded spindles and guide posts.
Clean these parts first.
Then lubricate them according to the planer's owner's manual.
On the planer shown here, paraffin wax provides a dry, low-mess lubricant for the threaded adjustment mechanism. Rub a small amount along the threads, then run the cutterhead through its height range to distribute the wax.
Wipe away any excess when you're finished.
The important point is to avoid leaving a wet, sticky coating that becomes a magnet for sawdust.
WOODSMITH TIP: Less Is Better. When lubricating woodworking machinery, more isn't necessarily better. Excess lubricant can collect dust and chips. Use the product and amount recommended for your machine and wipe away whatever isn't needed.
4. Inspect the Belt, Chains & Drive System
With the side covers removed, you may have access to the components that transfer power from the motor to the cutterhead and feed rollers.
This is a good opportunity to inspect them.
Start by removing accumulated dust and chips. Then visually check accessible belts, chains, sprockets, and gears for obvious wear or damage.
If the manufacturer calls for lubrication of a chain or gear system, apply the recommended lubricant sparingly.
Don't automatically lubricate every moving component you see. Belts, sealed bearings, gears, chains, and bushings can have very different maintenance requirements. Your owner's manual should determine what receives lubricant and what stays clean and dry.
5. Inspect and Clean the Planer Knives
The cutterhead is where the quality of the finished surface is determined, so don't overlook the knives.
Pitch and resin buildup can reduce cutting performance even when an edge is still reasonably sharp.
If your planer allows the knives or inserts to be removed for service, follow the manufacturer's procedure carefully.
Clean accumulated pitch from the cutterhead and cutting edges using an appropriate cleaner. A brass brush can be useful for stubborn deposits.
While you're there, inspect the cutting edges.
Look for nicks, dull areas, damaged inserts, or other signs of wear. Depending on the cutterhead design, the solution may be sharpening, replacing conventional knives, or rotating/replacing individual carbide inserts.
WOODSMITH TIP: A Ridge Can Point to a Nick. If your planer consistently leaves a narrow raised ridge along a board, inspect the cutting edges. A nick in a knife or damaged insert can leave a corresponding ridge on every pass.
6. Clean the Feed Rollers
Feed problems aren't always caused by the board or the planer bed. Dirty feed rollers can also have trouble maintaining a good grip on the workpiece.
Dust, pitch, and residue gradually accumulate on the rollers and can reduce their effectiveness.
With the machine unplugged, clean the accessible portion of each roller using a cleaner and method appropriate for your machine. Follow the manufacturer's instructions for safely rotating or accessing the rollers so you can clean the entire circumference.
Avoid using a cleaner that could damage rubber or synthetic roller material.
A clean feed system helps maintain steady movement through the planer and contributes to a more consistent cut.
7. Wax the Planer Bed
The final maintenance job is one of the simplest — and often one of the most noticeable.
Clean the planer bed and extension tables thoroughly, then apply a thin coat of paste wax suitable for woodworking machine surfaces.
Allow the wax to haze according to its directions and buff it thoroughly.
A slick bed reduces friction as lumber travels through the planer. That means the feed rollers don't have to work as hard to move the stock, and long or heavy boards are easier to feed.
Just as important, buff the wax thoroughly so it doesn't transfer to the workpiece.

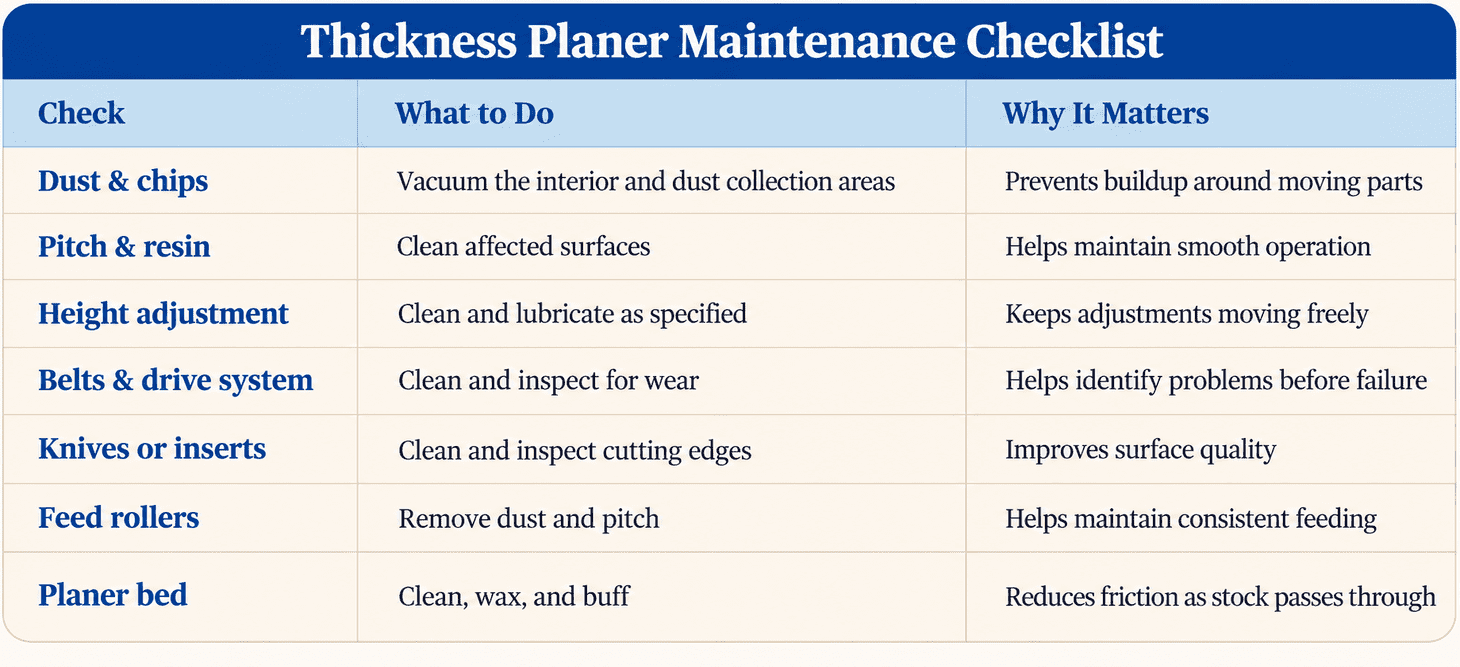

Thickness Planer Maintenance Checklist
When Does Your Planer Need a Tune-Up?
There's no single maintenance schedule that fits every shop. A planer processing rough lumber every week needs attention more frequently than one that's used only occasionally.
Instead, pay attention to how the machine behaves.
A few signs that it's time for a checkup include:
- Stock becoming noticeably harder to feed
- A stiff or difficult height adjustment
- Increasing pitch buildup
- A rougher surface than you normally expect
- Ridges or other repeatable marks in planed stock
- Unusual noises from the drive system
- Visible wear on accessible belts or drive components
Some of these symptoms can also indicate alignment, knife-setting, or mechanical problems rather than simple maintenance. If cleaning doesn't correct the problem, use the manufacturer's adjustment procedures before making changes to the machine.
A Little Planer Maintenance Goes a Long Way
A thickness planer doesn't need constant attention, but it does benefit from an occasional thorough checkup.
Remove the chips and dust, get rid of accumulated pitch, inspect the cutting and feed systems, maintain the height adjustment, and keep the bed clean and slick. Those relatively simple jobs help your planer feed stock smoothly and leave a better surface behind.
And once the covers are back in place, run a piece of scrap through the planer before returning to project stock. It's an easy way to make sure everything is operating properly after the tune-up.
