A belt sander may not be the first tool that comes to mind for fine woodworking, but there are times when its aggressive cutting action is exactly what you need.
A good example is a wide glued-up panel that won't fit through your thickness planer. Slight misalignment between boards can leave ridges along the glue joints, and trying to level the entire surface with a random-orbit sander can take a long time.
A belt sander lets you remove those high spots quickly. The key is using it in a controlled sequence. Start aggressively to level the panel, then gradually refine the surface until it's ready for final sanding.
Start by Removing Glue Squeezeout
Before reaching for the belt sander, remove any dried glue along the joints.
A scraper works well for this. Hardened beads of glue can quickly load a sanding belt, so scraping them away first saves abrasive and gives the sander direct contact with the wood.
Once the glue is gone, draw several light pencil marks across the panel. These become visual reference marks as you sand. Areas where the pencil disappears first are being cut, while remaining marks help identify low spots.
Step 1: Sand Across the Grain with 80 Grit
Start with an 80-grit sanding belt for the initial leveling.
Rather than sanding with the grain, make the first passes across the grain. This aggressive approach quickly knocks down ridges between adjoining boards and removes the high spots across the panel.
Keep the belt sander moving continuously. A belt sander removes material quickly, and lingering in one spot can create a depression that's difficult to remove later.
WOODSMITH TIP: Let the Sander Do the Work. There's no need to bear down on the sander. Keep it flat against the surface and guide it steadily across the panel. Excessive pressure makes it easier to create dips and uneven areas.
Step 2: Make Diagonal Passes with 100 Grit
Once the major ridges are gone, switch to a 100-grit belt and change direction.
Make a couple of diagonal passes across the panel. These passes continue leveling the surface while removing the more aggressive scratches left by the 80-grit belt.
Changing sanding direction also makes it easier to see your progress rather than simply following the scratches from the previous grit.
Step 3: Check the Panel with a Straightedge
Don't rely entirely on your hand to tell you when the panel is flat.
Lay a straightedge across the panel in several locations and directions. If you find a low area, mark it with a pencil. The goal isn't to sand the low spot — it's to gradually bring the surrounding high areas down to the same level.
Continue checking and sanding until the straightedge shows a consistently level surface.
Step 4: Finish Sand with the Grain
Once the panel is flat, switch to a 120-grit belt for the final belt-sanding pass.
This time, work with the grain. The goal is no longer to level the panel aggressively. You're refining the surface and removing the cross-grain and diagonal scratches left by the earlier steps.
At this point, the belt sander has done its job. Switch to a random-orbit sander for the remaining surface preparation and continue through your normal sanding sequence before applying finish.

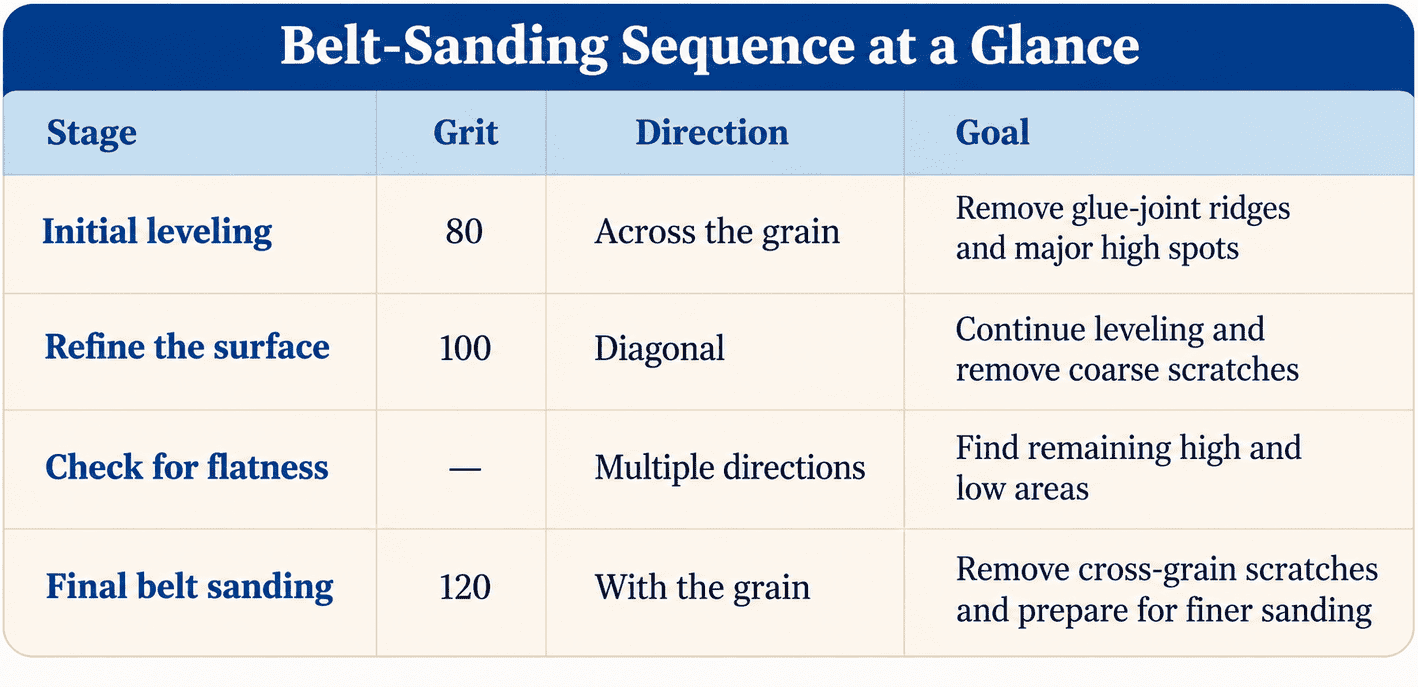

Belt-Sanding Sequence at a Glance
A Fast Way to Flatten Oversized Panels
A belt sander is aggressive, and that's exactly what makes it useful for this job. Used in a deliberate progression — across the grain, diagonally, and finally with the grain — it can quickly turn a slightly uneven glue-up into a flat panel.
Just remember that the belt sander is doing the heavy leveling, not the final surface preparation. Once the panel is flat, move on to finer sanding to get it ready for finish.
